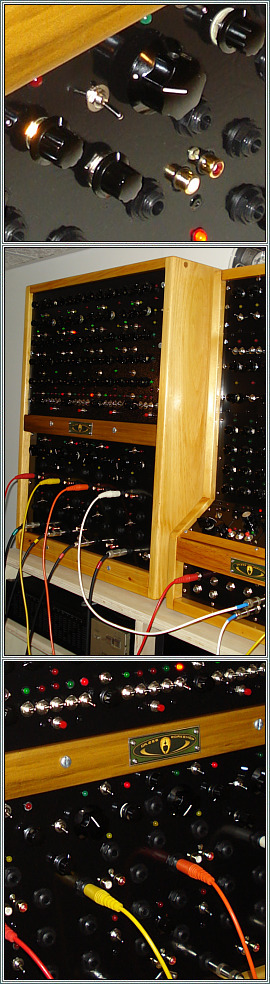

Click to View In The Studio PHOTO-GALLERY
Click to View In The Studio PHOTO-GALLERY
Dr. ZEE Custom Musical Instruments and Equipment Workshop - EVERY INSTRUMENT DESERVES LOVE!
Dr. ZEE WORKSHOP: Custom Musical Instruments and Accessories Projects.
Dr. ZEE Workshop RAW-BEAT-QUAD 4x4
Analog Drum / Rhythm Synthesizer

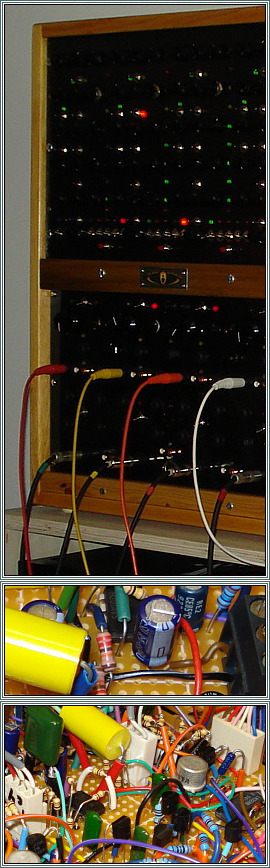

Click To View In The Shop Photo-Gallery
Dr. ZEE WORKSHOP RAW-BEAT-QUAD DRUM SYNTHESIZER FEATURES:
Four independent channels. Each Channel Provides:
1. Triangular or Square wave VCO,
Sweep and LFO Controlled Pitch Modulation and Level Control.
2. Internal or External Vc option. Channel Tune Control.
10-turn Fine Tune Control on Channel 1 and 3.
3. 12 "color" noise oscillator with Density and LevelControl.
4. VCO Gate with Gate Decay Control and External Gate Control Input.
5. Noise Gate with Gate Decay Control and External Gate Control Input.
6. AUX Input with Level Control.
7. VCO, Noise and AUX mixer with Channel "Drive" Control.
8. Attack or Click Presence Control.
9. Channel Decay Range Selector and Control.
10. Internal/External LFO Selector with external LFO Level Control
11. Internal Square Wave LFO Frequency Range Selectror and Control.
12. LFO Controlled Filter with Two Types Selector and Level Control
13. LFO Filter with Filter Selector and Level Control
14. Triggered or Contineus Mode. Manual Trigger Button.
15. Auto Trigger Mode with Internal Pulse Speed Control.
16. Four Trigger Inputs, Gate-As-Trigger Input, Trigger Through Output.
17. Internal Pulse Oscillator Output
. 18. 5-pin DIN Jack for Optional Remote Trigger / Sequencer Unit.
19. 8-segment Audio Output Level Indicator. LEDs Functions Indicators.
**********
Designed to be integrated with and controlled by:
ASC-1 ANALOG SEQUENTIAL CONTROLLER
**********
Can be controlled by Computer MIDI-sequencer / MIDI Synthesizer using:
4-Channel AUDIO TO GATE / TRIGGER and Vc CONVERTER
LISTEN TO MP3 AUDIO SAMPLES:
RAW GROOVE COMPLEX SET-UP SESSION DEMONSTRATION - [.mp3]
TECHNO-DANCE BEAT & GROOVE SESSION DEMONSTRATION - [.mp3]
ACID-TECHNO BEAT 4-pattern GROOVE SESSION DEMONSTRATION - [.mp3]
OLD SCHOOL BEAT - [.mp3], TECHNO GROOVE - BASS and BEAT - [.mp3]
SLOW WALKING BASS and BEAT GROOVE - [.mp3]
HEAVY INDUSTRIAL BASS and BEAT GROOVE - [.mp3]
HARD TICKER ELECTRO BASS and BEAT GROOVE - [.mp3]
TWEAKING ON-THE-FLY SESSION BASS and BEAT GROOVE - [.mp3]
SINGLE HITS -[.mp3], SIRENS FX -[.mp3], PULSING-MACHINE FX -[.mp3]
**********
WATCH DEMONSTRATION VIDEO IN ACTION:
RAW-BEAT-QUAD, ASC-1 Complex Set-Up Demonstration VIDEO [.wmv]
RAW-BEAT-QUAD, ASC-1 Sequencer Demonstration VIDEO [.wmv]
RAW-BEAT-QUAD with AUDIO TO TRIGGER / Vc CONVERTER controlled by
Computer MIDI Sequencer and MIDI Synthesizer

RAW-BEAT-QUAD, ASC-1 Sequencer TECHNO-DANCE Session VIDEO [.wmv]
RAW-BEAT-QUAD, ASC-1 Sequencer Set-Up Example VIDEO [.wmv]
***
RAW-BEAT-QUAD Synth, Sequential Controller VIDEO [.wmv]
LISTEN To AUDIO-TRACK from The VIDEO Above - [.pm3]
***
RAW-BEAT-QUAD, SOURCE-ONE, Sequential Controller VIDEO [.wmv]
LISTEN To AUDIO of The BEAT-Track from The VIDEO Above - [.pm3]
***
RAW-BEAT-QUAD / FOSTEX R8 Recording DEMO-SESSION - [PART-1] [.wmv]
RAW-BEAT-QUAD / FOSTEX R8 Recording DEMO-SESSION - [PART-2] [.wmv]
- IN THE MAKING -
(Click on Titles below to view detailed Photos/Charts and Descriptions)

RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-1]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-2]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-3]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-4]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-5]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-6]
RAW-BEAT-QUAD Analog Drum Synthesizer PROJECT - [PART-7]
RAW-BEAT-QUAD Analog Drum Synthesizer - [IN THE SHOP GALLERY]
RAW-BEAT-QUAD Analog Drum Synthesizer [IN THE STUDIO GALLERY]
**********
- TECHNICAL INFORMATION / DIAGRAMS / LAYOUTS -
RAW-BEAT-QUAD Analog Drum Synthesizer SCHEMATICS DIAGRAM
RAW-BEAT-QUAD Analog Drum Synthesizer BLOCK DIAGRAM
RAW-BEAT-QUAD Analog Drum Synthesizer - CONTROL DIAGRAM
RAW-BEAT-QUAD Analog Drum Synthesizer - MAIN BOARD LAYOUT
RAW-BEAT-QUAD Analog Drum Synthesizer - INDICATORS BOARD LAYOUT
RAW-BEAT-QUAD Analog Drum Synthesizer - CONTROL PANEL LAYOUT
RAW-BEAT-QUAD - CONTROL PANEL CONNECTIONS
RAW-BEAT-QUAD - INs/OUTs JACKS PANEL LAYOUT
RAW-BEAT-QUAD - INs/OUTs JACKS PANEL CONNECTIONs
**********

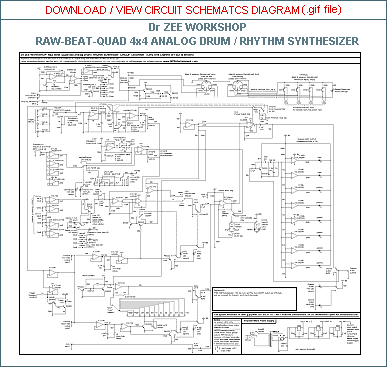

CLICK to download and view Schematics Circuit Diagram

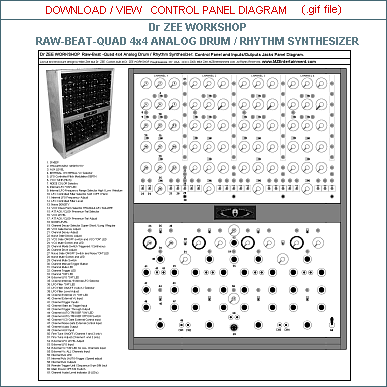

CLICK to download and view Control Panel and Inputs / Outputs Panel Layout Diagram and Details
