[ STORE FRONT ] >> [ Electronic Parts and Components ] >> Relays, Solenoids, Sensors
ITEM / PRODUCT PHOTOS: ITEM / PRODUCT DESCRIPTION: BUY IT PRICE:
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

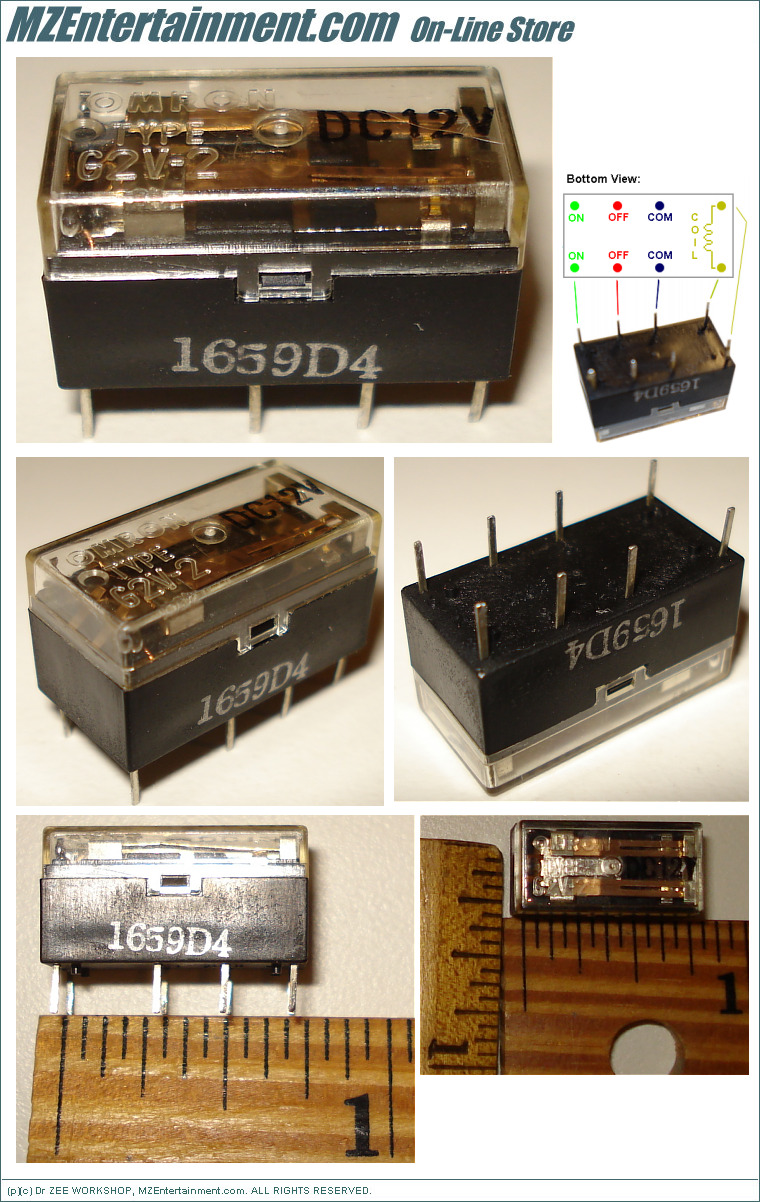

OMRON Type-E G2V-2 Relay.
Coil Voltage: 12 Volt DC.
Coil DC Resistance = 270 Ohms.
Pin Pitch = 0.1 inch (2.54 mm)
Contact Configuration: DPDT,
Double Pole Double Throw, Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
EACH TESTED.
$3.99 +S&H
7 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

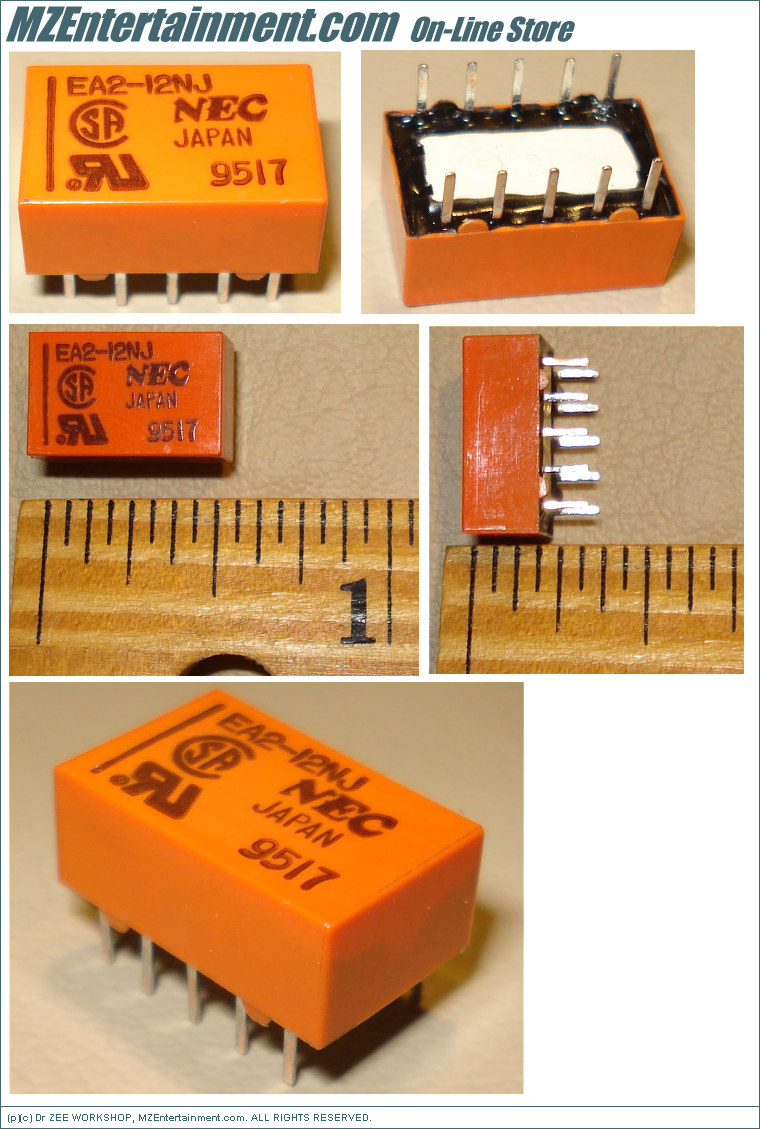

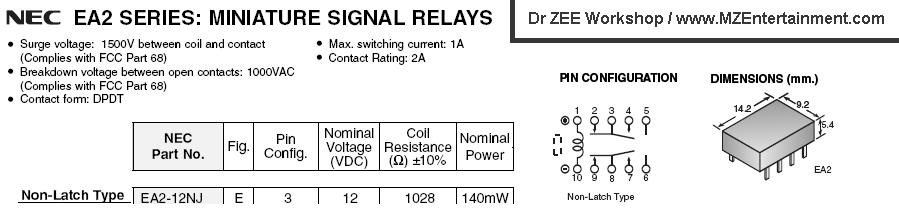

NEC EA2-12NJ Miniature Relay.
CLICK HERE: NEC EA2-12NJ - See More Technical Information.
Coil Voltage: 12 Volt DC.
Coil DC Resistance = 1,000 Ohms.
Pin Pitch = 0.1 inch (2.54 mm)
Contact Configuration: DPDT,
Double Pole Double Throw, Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
Made in Japan.
EACH TESTED.
$2.99 +S&H
12 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

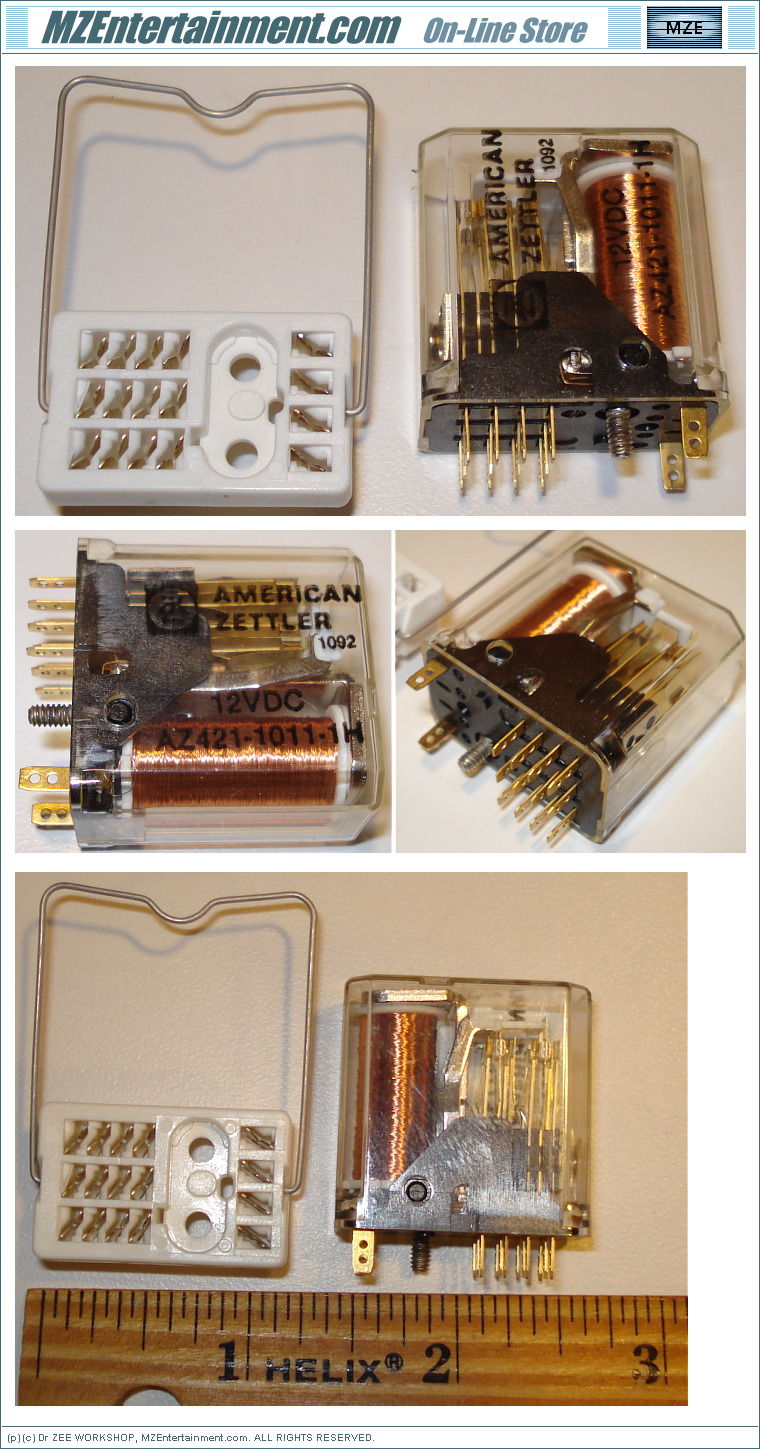

AMERICAN ZETTLER AZ421-1011-1H Relay.

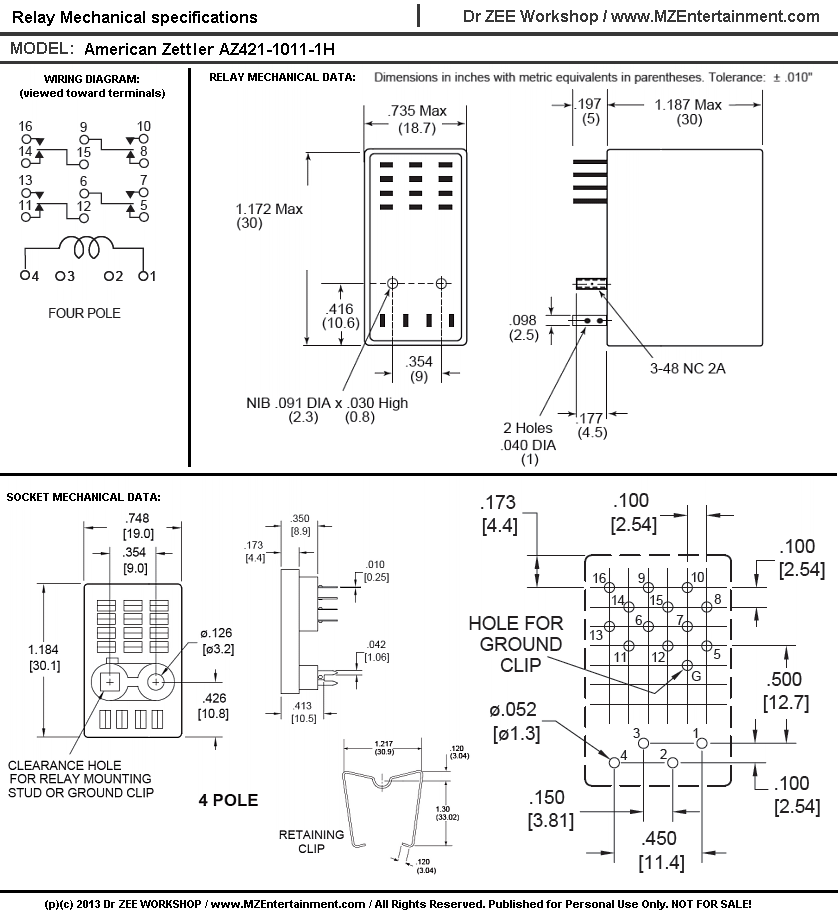

CLICK TO VIEW AZ421-1011-1H Relay and socket Wiring Diagram and Mechanical Data.
Coil Voltage: 12 Volt DC.
Coil resistance = 185 Ohms.
Contact Configuration: 4PDT,
Four Pole Double Throw, Four Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
Glden Contact terminals.
Including socket with retaining clip.
Removed from retired equipment.
TESTED.
$19.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
AMERICAN ZETTLER AZ421-1011-1H Relay.
CLICK TO VIEW AZ421-1011-1H Relay and socket Wiring Diagram and Mechanical Data.
Coil Voltage: 12 Volt DC.
Coil resistance = 185 Ohms.
Contact Configuration: 4PDT,
Four Pole Double Throw, Four Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
Including socket with retaining clip.
Removed from retired equipment.
TESTED.
$17.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

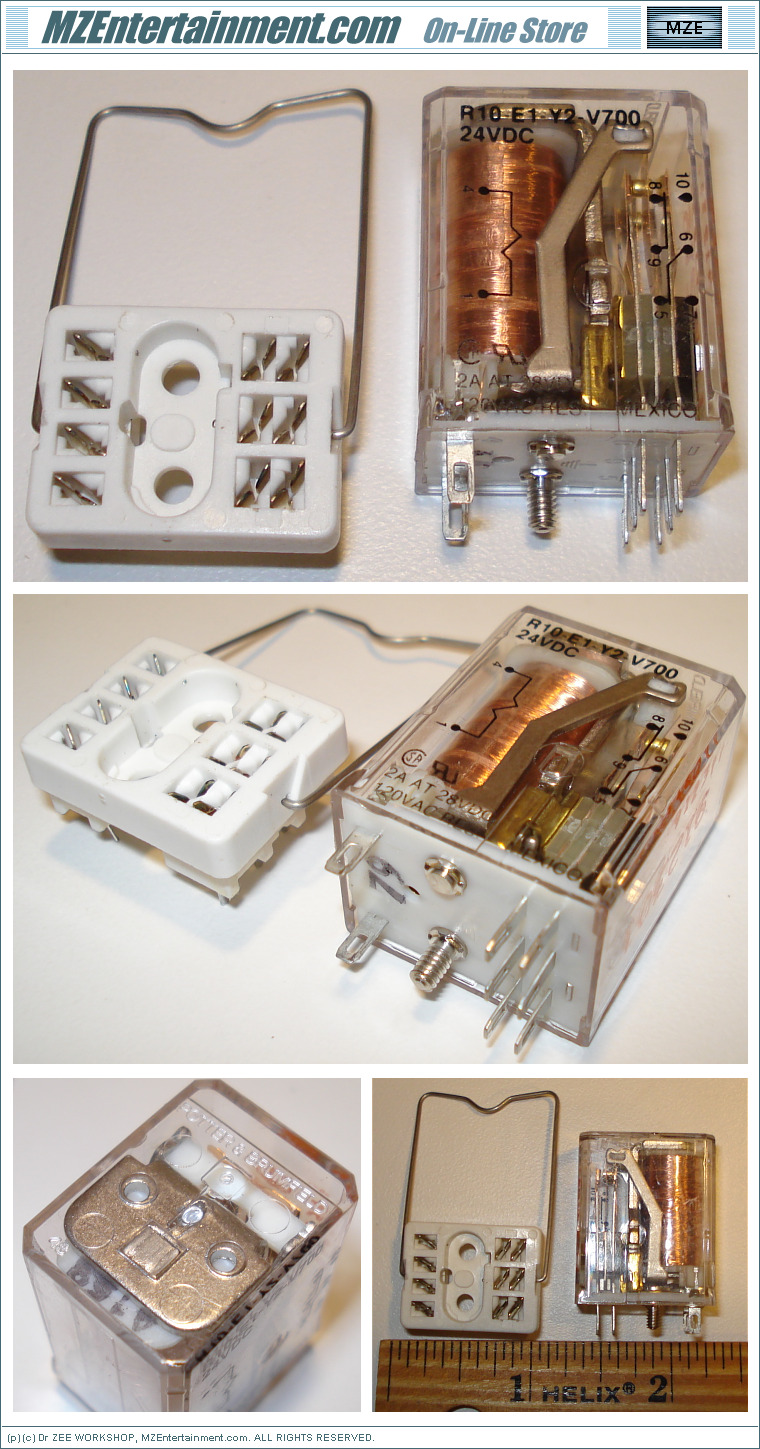

POTTER & BRUMFIELD R10-E1-Y2-V700 Relay.

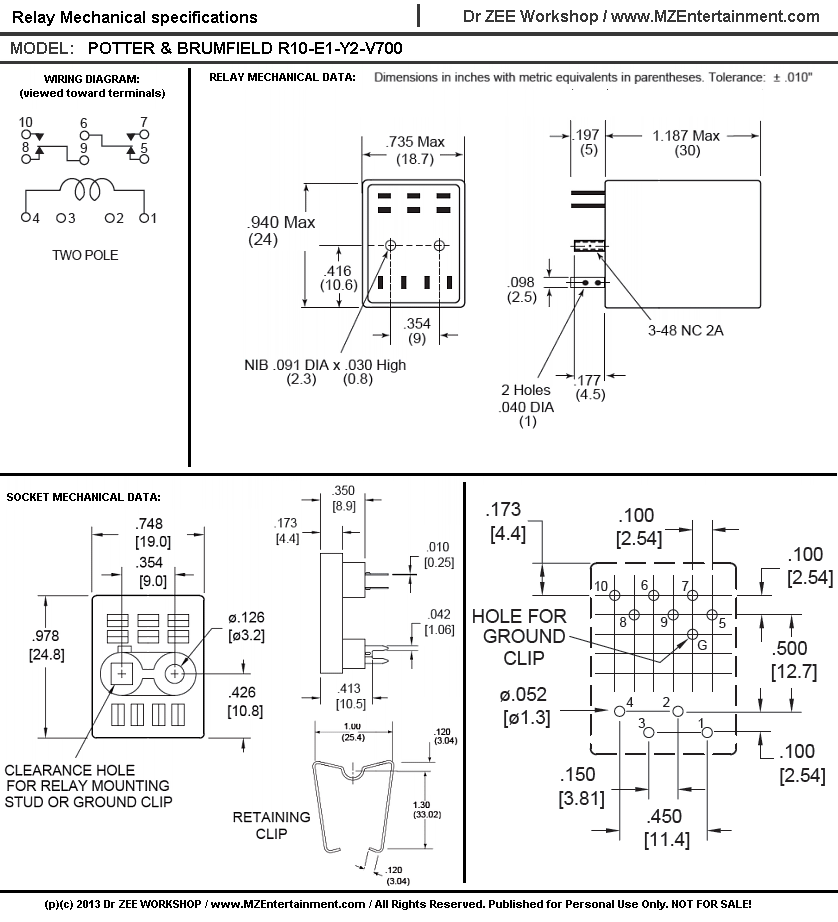

CLICK TO VIEW R10-E1-Y2-V700 Relay and socket Wiring Diagram and Mechanical Data.
Coil Voltage: 24 Volt DC.
Coil DC Resistance = 670 Ohms.
Contact Configuration: DPDT,
Double Pole Double Throw, 2 Two Position "ON-ON" Switches.
Contacts rating: 2 Amp at 28 Volts DC.
Contact construction type: Non-Latching.
Including socket with retaining clip.
Removed from retired equipment.
TESTED.
$14.99 +S&H
2 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

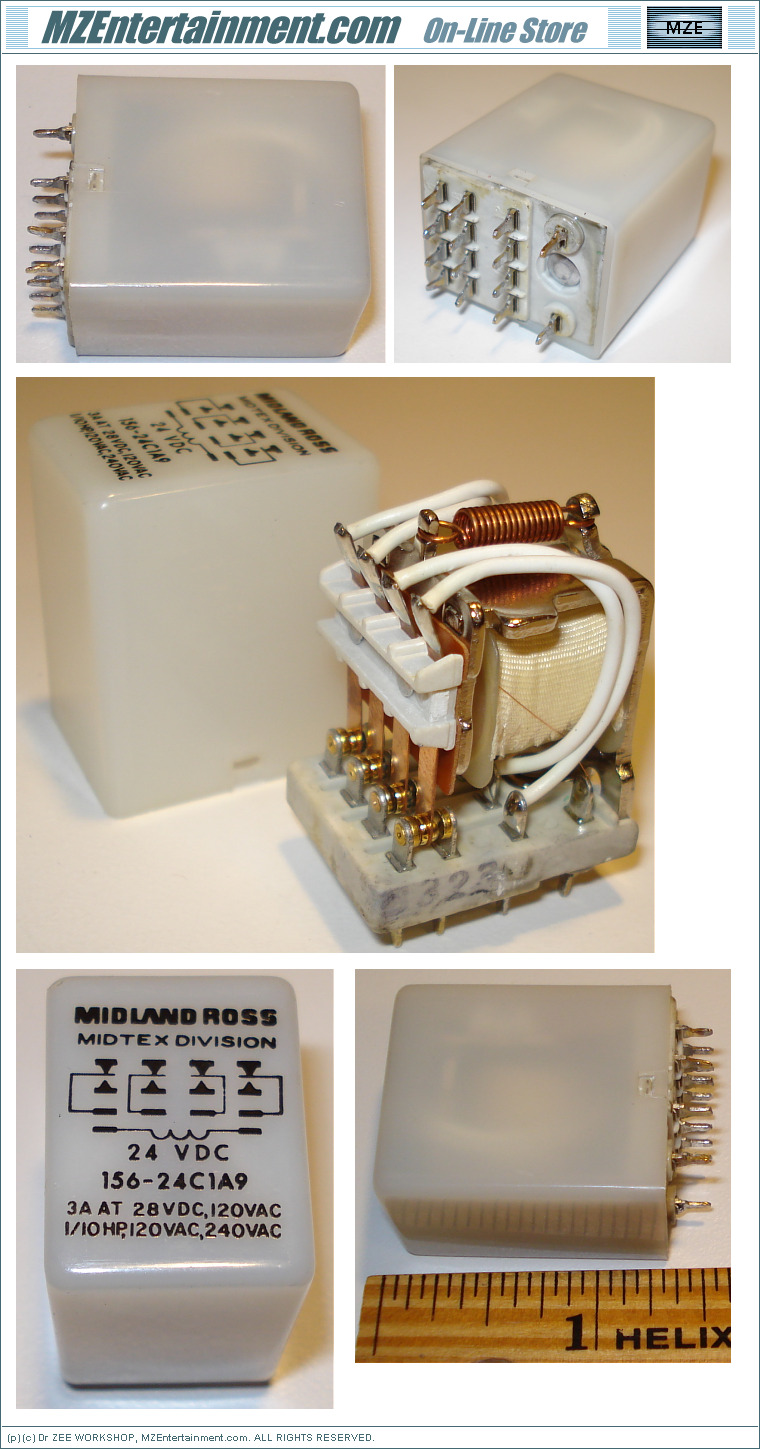

MIDLAND ROSS / AEMCO, MIDTEX division 156-24C1A9 Relay.
Coil Voltage: 24 Volt DC.
Note: Reley activates at apx. 12 VDC.
Coil DC Resistance = 620 Ohms.
Pin Pitch = 3/16 inch (4.5 mm)
Pin Size = 0.5x1.0 mm
Unit Size = W-21mm x L-27mm x H-33mm
Contact Configuration: 4PDT,
Four Pole Double Throw, Four Two Position "ON-ON" Switches.
Contacts rating: 3 Amp at 28 Volts DC / 120 Volts AC.
Contact construction type: Non-Latching.
Removed from retired equipment. Reconditioned.
EACH TESTED.
$7.99 +S&H
12 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

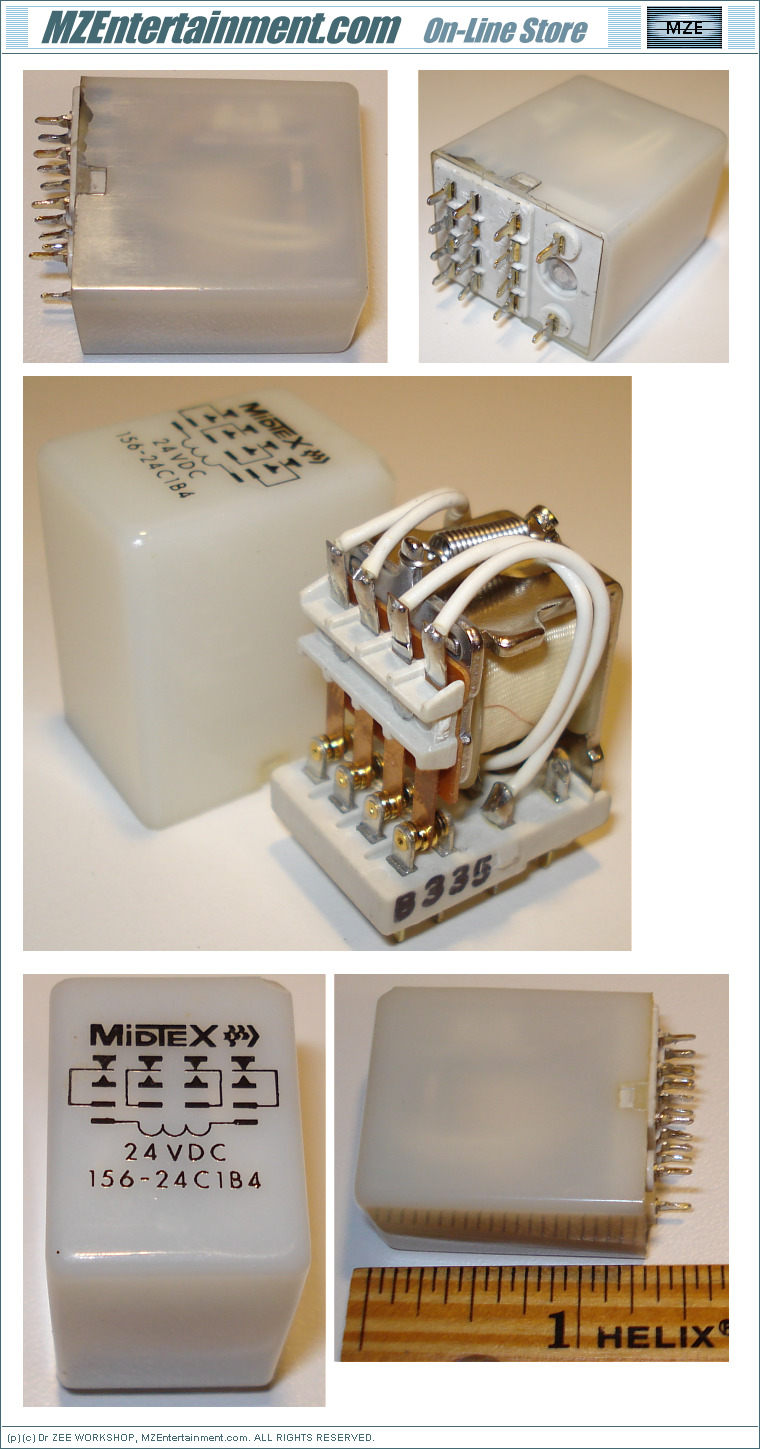

MIDTEX 156-24C1B4 Relay.
Coil Voltage: 24 Volt DC.
Note: Reley activates at apx. 12 VDC.
Coil DC Resistance = 620 Ohms.
Pin Pitch = 3/16 inch (4.5 mm)
Pin Size = 0.5x1.0 mm
Unit Size = W-21mm x L-27mm x H-33mm
Contact Configuration: 4PDT,
Four Pole Double Throw, Four Two Position "ON-ON" Switches.
Contacts rating: 3 Amp at 28 Volts DC / 120 Volts AC.
Contact construction type: Non-Latching.
Removed from retired equipment. Reconditioned.
EACH TESTED
$7.99 +S&H
12 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

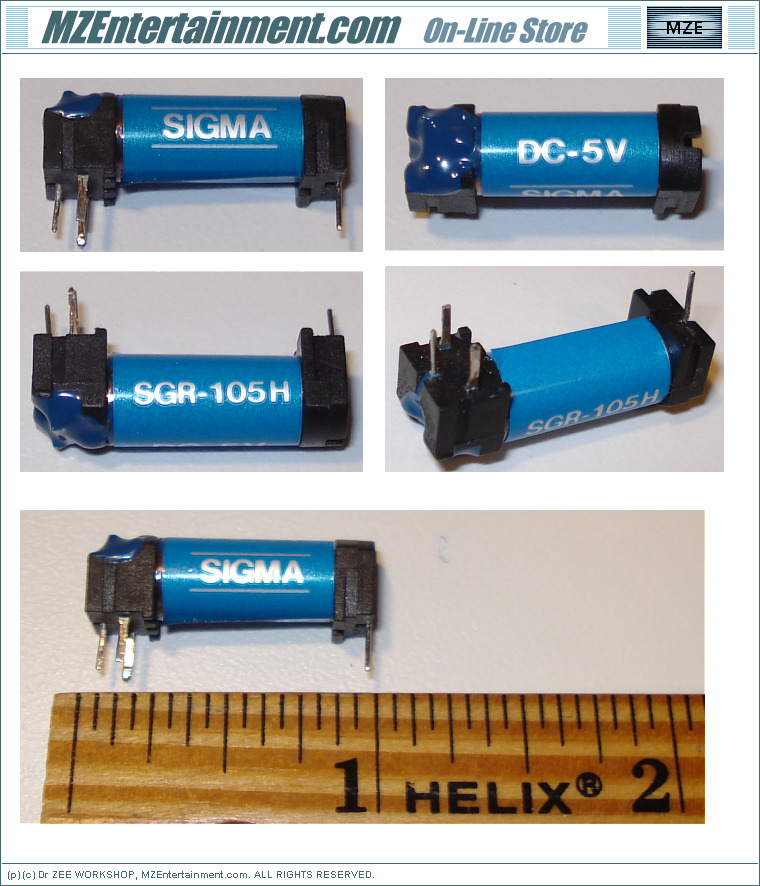

SIGMA SGR-105H Reed Relay.
Coil Voltage: 5 Volt DC.
Coil resistance = 400 Ohms.
Contact Configuration: SPST,
Single Pole Single Throw, "OFF-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED
$2.49 +S&H
7 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

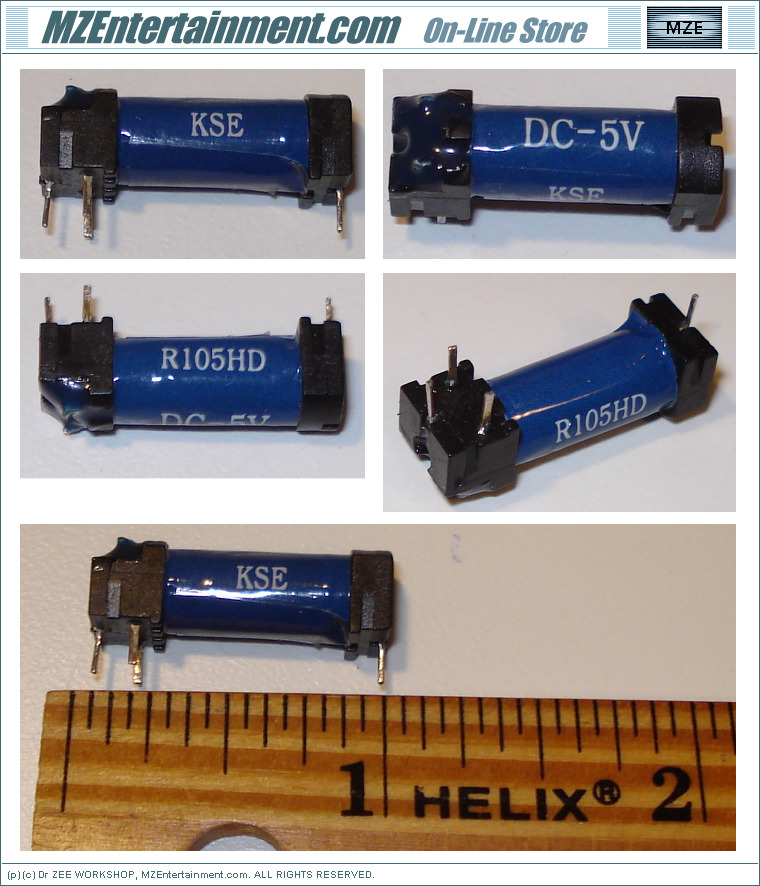

KSE R105HD Reed Relay.
Coil Voltage: 5 Volt DC.
Coil resistance = 400 Ohms.
Contact Configuration: SPST,
Single Pole Single Throw, "OFF-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED
$2.49 +S&H
19 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

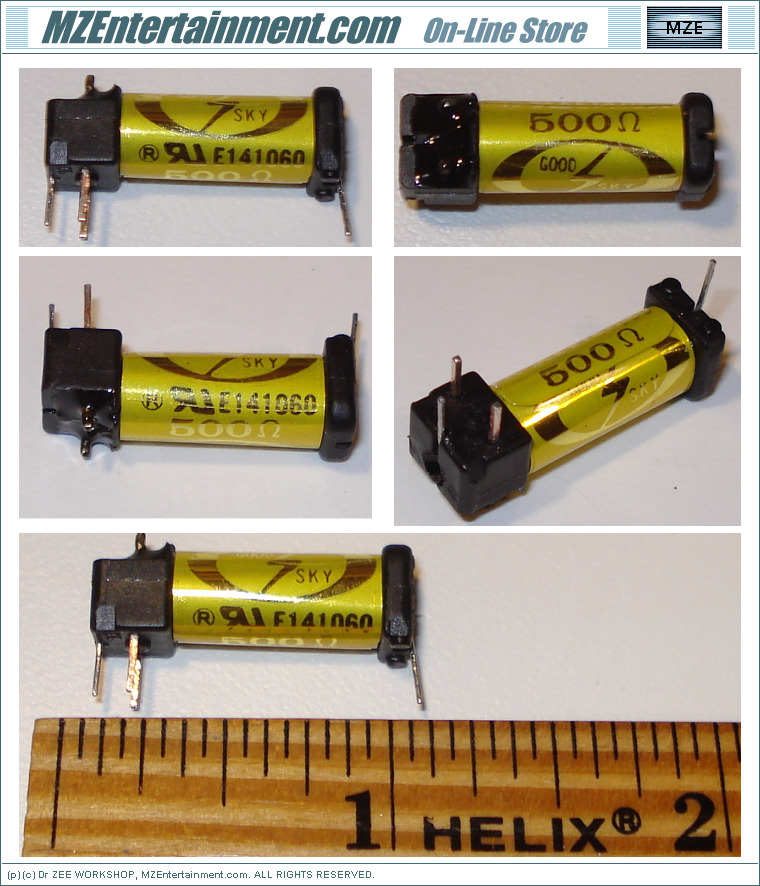

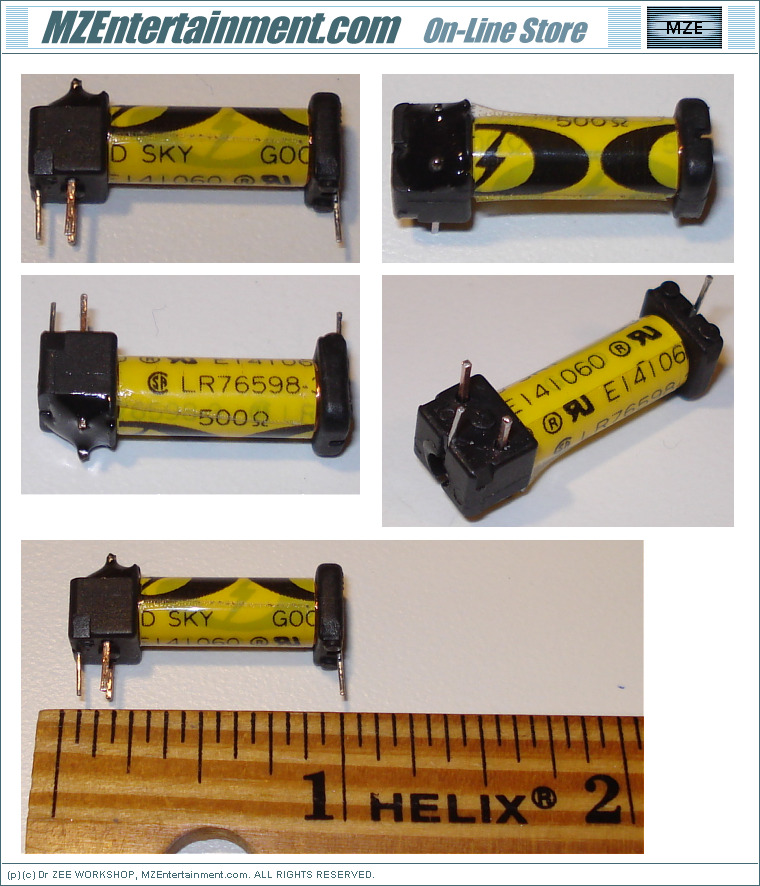

GOOD SKY ( GOODSKY ) Reed Relay.
Coil Voltage: 5 Volt DC.
Coil resistance = 500 Ohms.
Contact Configuration: SPST,
Single Pole Single Throw, "OFF-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED
$2.49 +S&H
6 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
GOOD SKY ( GOODSKY ) Reed Relay.
Coil Voltage: 5 Volt DC.
Coil resistance = 500 Ohms.
Contact Configuration: SPST,
Single Pole Single Throw, "OFF-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED
$2.49 +S&H
11 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
GOOD SKY ( GOODSKY ) Reed Relay.
Coil Voltage: 5 Volt DC.
Coil resistance = 700 Ohms.
Contact Configuration: SPST,
Single Pole Single Throw, "OFF-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED
$2.49 +S&H
11 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

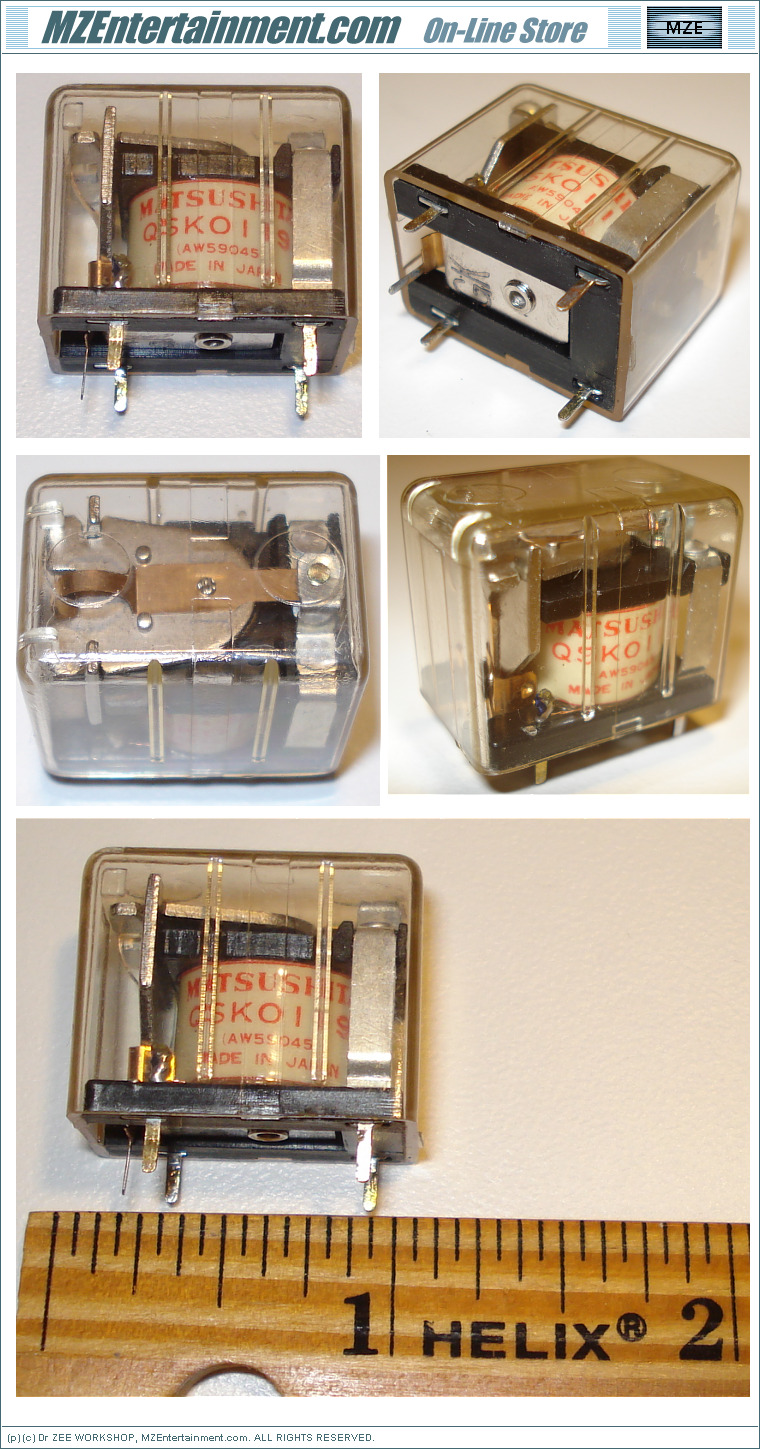

MATSUSHITA QSK0119 ( AW59045 ) Relay.
Coil Voltage: 6 Volt DC.
Coil current at 6 VDC = 60 mA.
Contact Configuration: SPDT,
Single Pole Double Throw, One Two Position "ON-ON" Switch.
Contact construction type: Non-Latching.
Made in Japan.
Removed from retired equipment.
TESTED.
$5.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

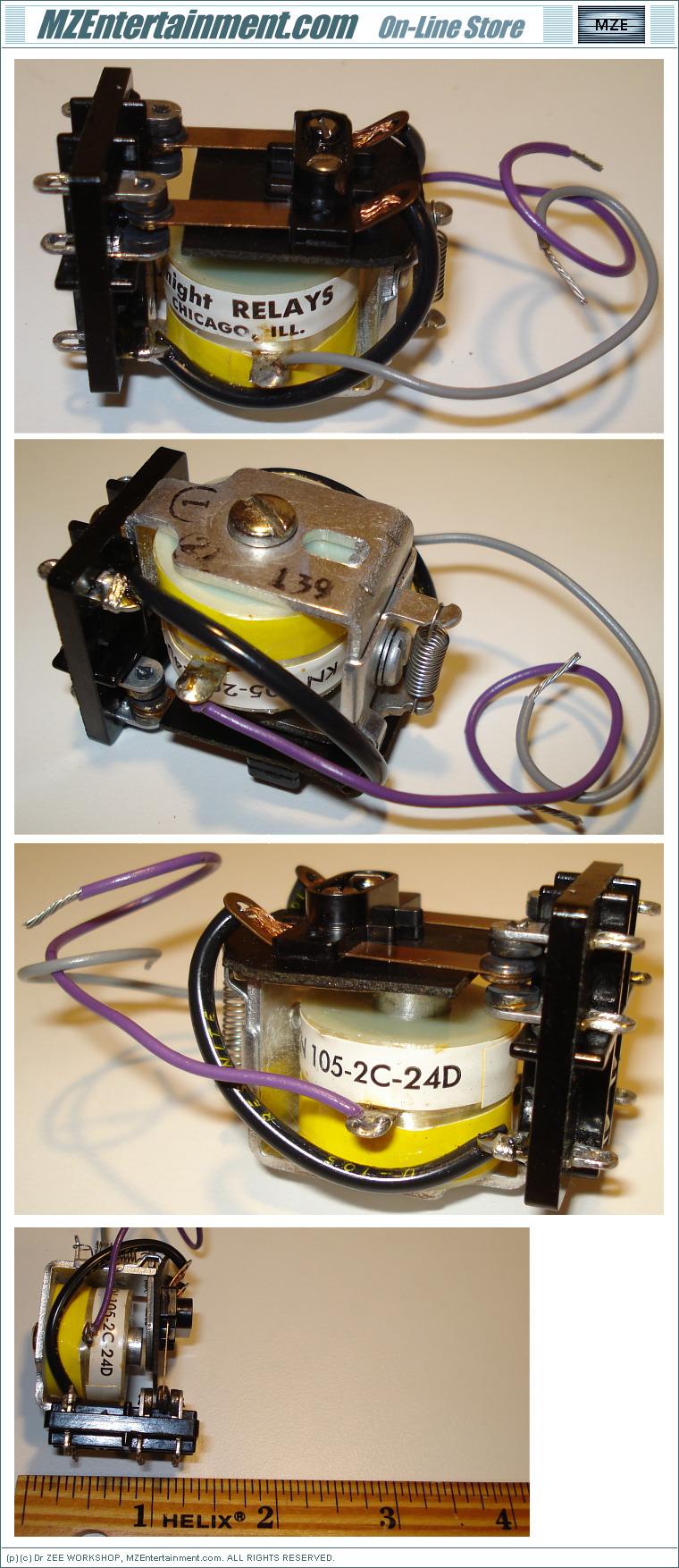

KNIGHT RELAYS KN 105-2C-24D Relay.
CHICAGO, ILL, USA.
Coil Voltage: 24 Volt DC.
Coil current at 24 VDC = 25 mA.
Contact Configuration: DPDT,
Double Pole Double Throw, 2 Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
Made in USA.
Removed from retired equipment.
TESTED.
$7.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

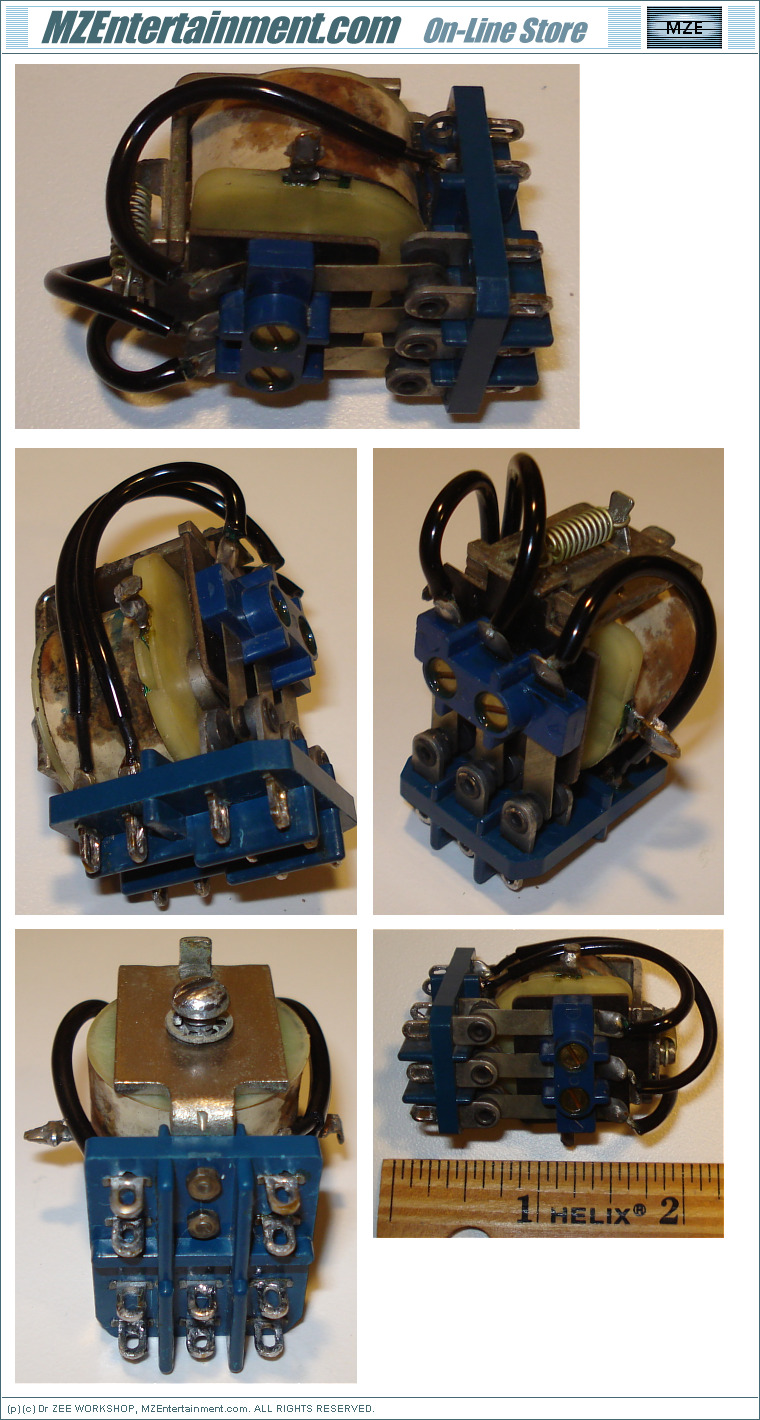

Pearce Simpson Companion CB Radio transceiver Rx/Tx switch Relay.
Receive / Transmit function switch.
p/n: 19B-16 / 16A-8G.
Coil Voltage: 12 Volt DC.
Coil resistance = 70 Ohms.
Contact Configuration: 3PDT,
Three Pole Double Throw, 3 Two Position "ON-ON" Switches.
Contact construction type: Non-Latching.
Made in USA.
Removed from retired equipment.
TESTED.
$7.99 +S&H
2 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

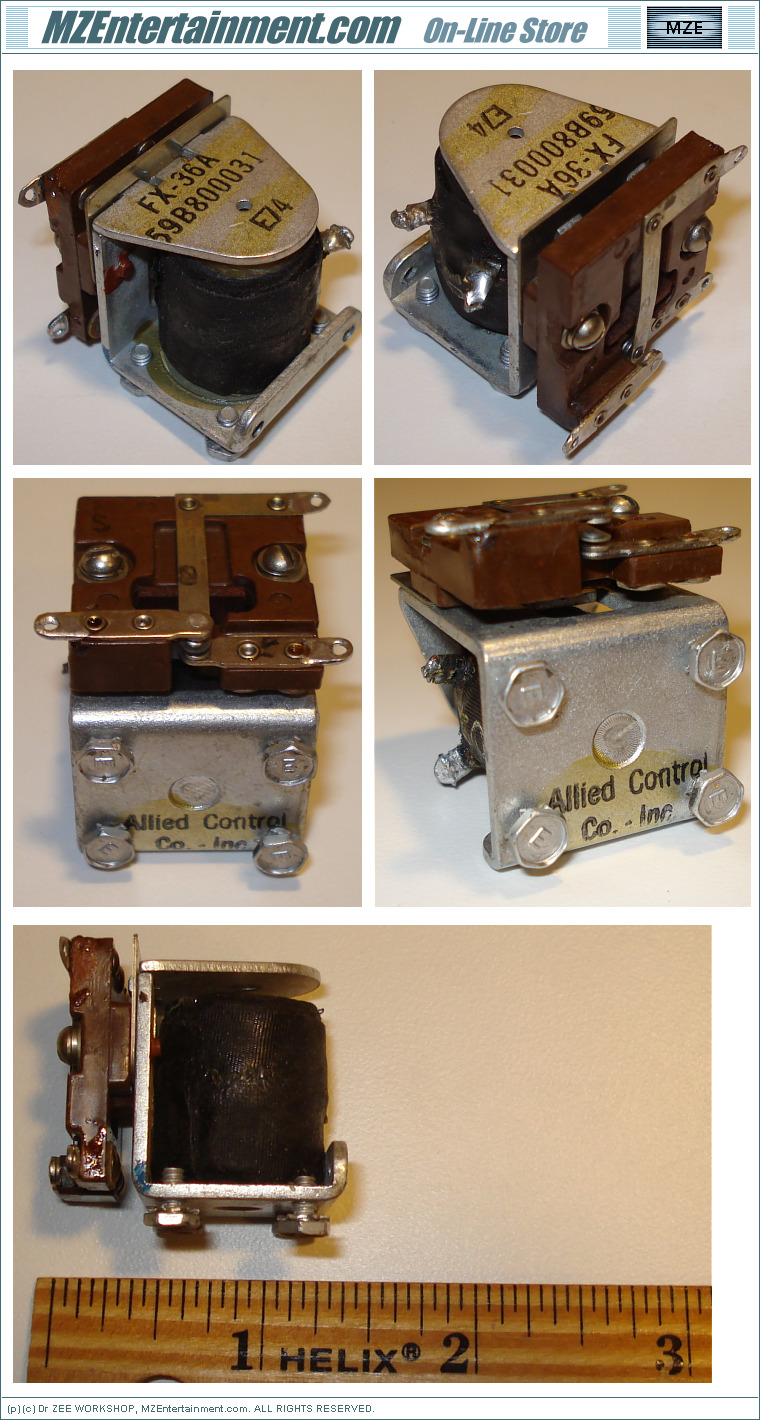

ALLIED CONTROL FX-36A (59B800031) Relay.
Coil Voltage: 4-6 Volt DC.
Coil current at 4 / 6 VDC = 130 / 180 mA.
Contact Configuration: SPDT,
Single Pole Double Throw, One Two Position "ON-ON" Switch.
Contact construction type: Non-Latching.
Removed from retired equipment.
TESTED.
$5.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
Vintage POTTER & BRUMFIELD P&B
Mercury Wetted Contact Relay
Model JM2 110 22.
OCTAL Type base (8-pin)
Coil Voltage: activates at apx 15 Volt DC.
Coil DC Resistance = 520 kOhms.
Double Pole Double Throw (DPDT) Switch.
Made in USA.
NOTE: Pinout diagram is shown on the Housing.
Tested in Vertical Orientation (Socket / Pins Down).
$19.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

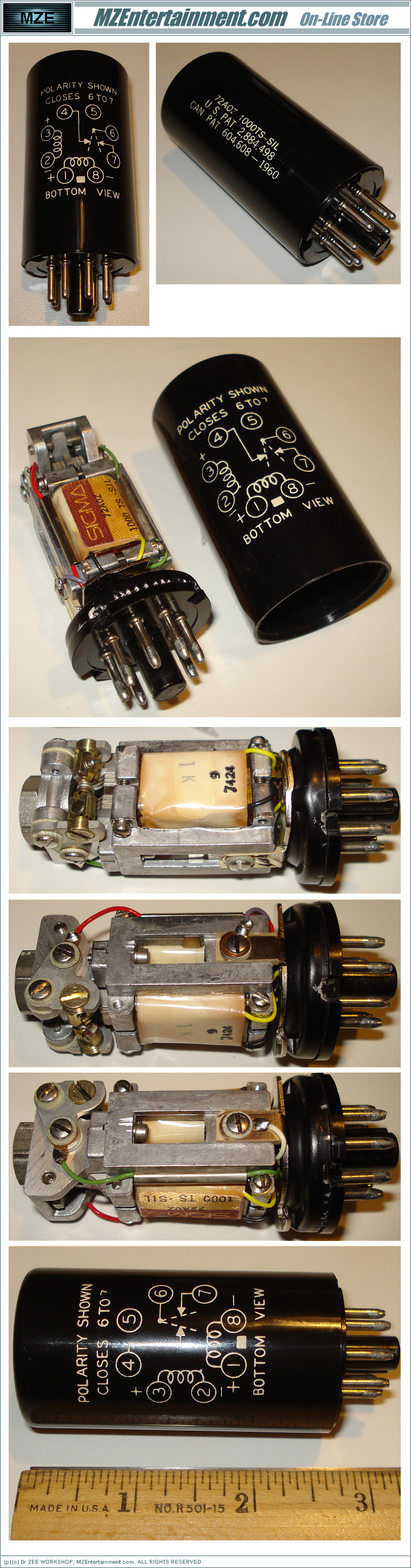

Vintage SIGMA Instruments Inc.
Dual Coil alternating Switch Relay.
P/N: 71AOZ-1000TS-SIL
OCTAL Type base (8-pin)
Coil Voltage: each activates at apx 2 Volt DC.
Coil DC Resistance = 1 kOhms (each).
Contact Configuration: SPDT,
Single Pole Double Throw, Alternating Two Position "ON-ON" Switch.
NOTE: Pinout diagram and Polarity/Action is shown on the Housing.
Made in USA.
Removed from Retired Equipment.
TESTED.
$9.99 +S&H
6 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

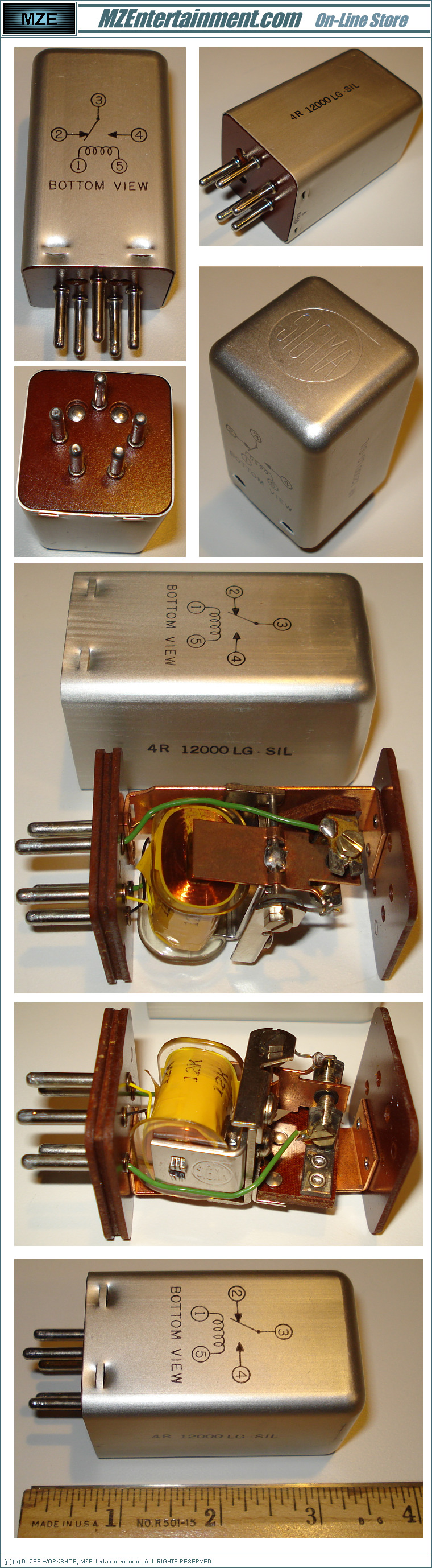

Vintage SIGMA Instruments Inc. Relay.
P/N: 4R-12000LG-SIL
5-pin UX5 Type base
Coil Voltage: 24 Volt DC.
Coil DC Resistance = 12 kOhms.
Contact Configuration: SPDT,
Single Pole Double Throw, Two Position "ON-ON" Switch.
NOTE: Pinout diagram is shown on the Housing.
Made in USA.
Removed from Retired Equipment.
TESTED.
$9.99 +S&H
3 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

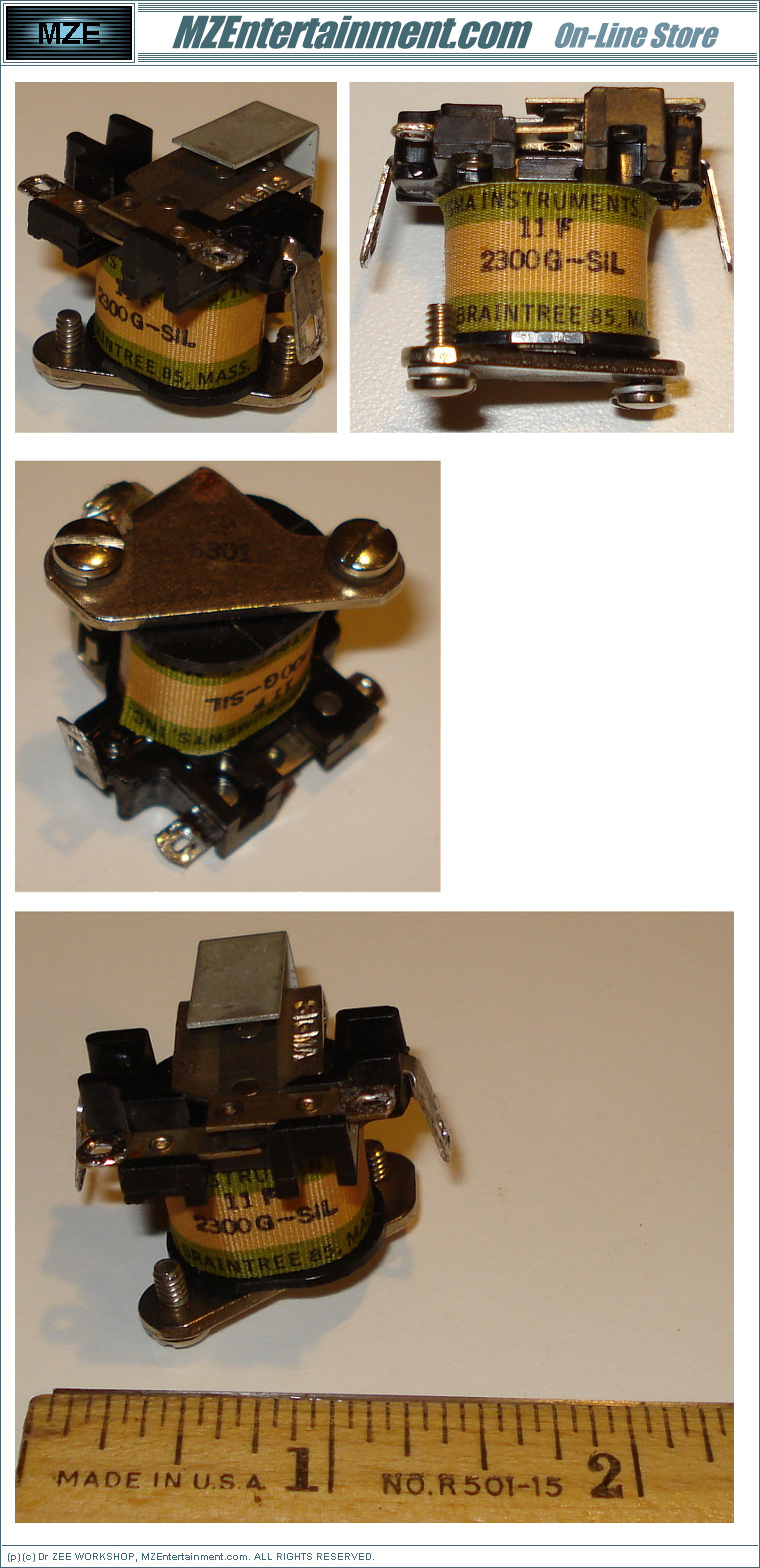

Vintage SIGMA Instruments Inc. Relay.
P/N: 11F-2300G-SIL
Coil Voltage: activates at apx 12 Volt DC.
Coil DC Resistance = 2300 Ohms.
Contact Configuration: SPDT,
Single Pole Double Throw, One Two Position "ON-ON" Switch.
Made in USA.
Removed from Retired Equipment.
TESTED.
$4.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

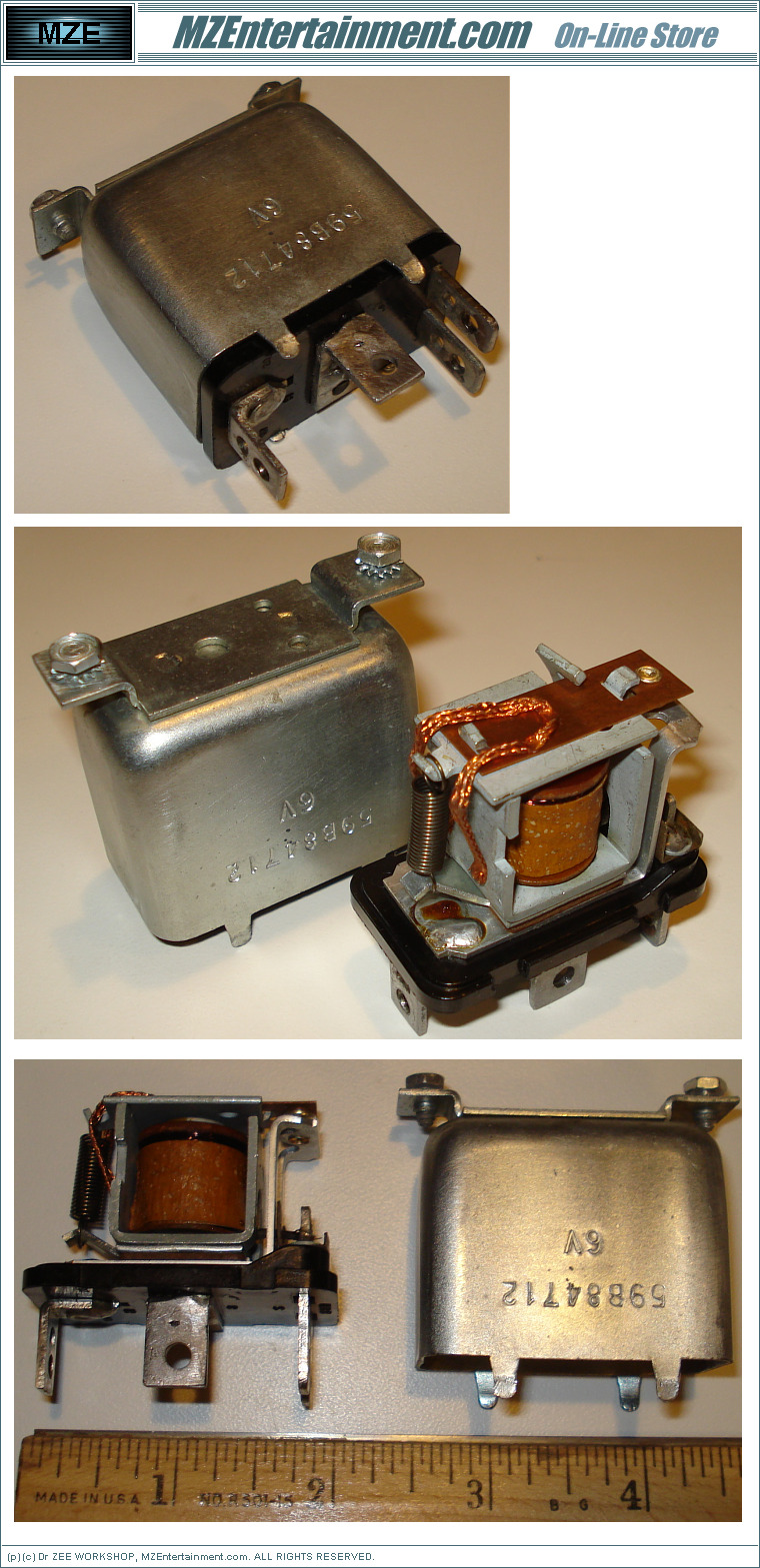

Vintage MOTOROLA Relay.
P/N: 59B84712
Coil Voltage: 6 Volt DC.
Coil DC Resistance = 25 Ohms.
Contact Configuration: single OFF-ON Switch.
Removable Metal Cover.
Made in USA.
Removed from Retired Equipment.
TESTED.
$7.99 +S&H
2 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
Vintage MAGNECRAFT Relay.
Coil Voltage: 6 Volt DC.
Coil DC Resistance = 20 Ohms.
Contact Configuration: Three single OFF-ON Switches and one single ON-OFF switch.
Removable Metal Cover.
Made in USA.
Removed from Retired Equipment.
TESTED.
$7.99 +S&H
1 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

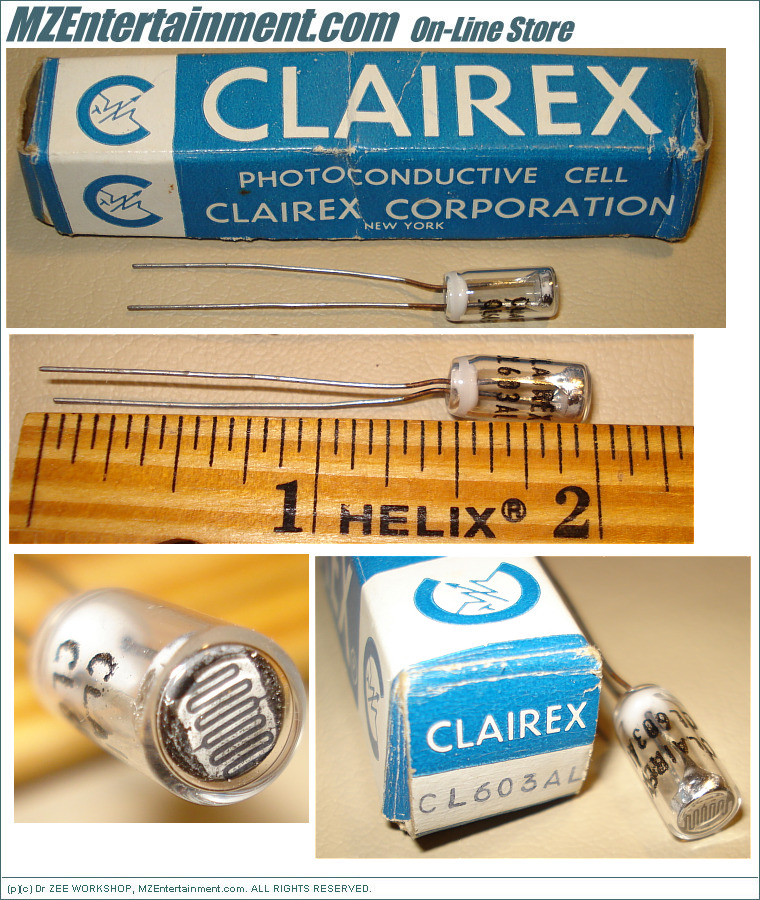

CLAIREX CL603AL Photoconductive Cell.
NEW OLD STOCK.
Vintage. Original Box.
NEW YORK. U.S.A.
$2.99 +S&H
0 AVAILABLE!
SOLD
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS
Infrared IR Sensor ( Detector / Receiver) Unit with Shield.
JD S26.
For IR Remote Control Systems
Each Sensor passed basic test with 5 Volts DC Supply:

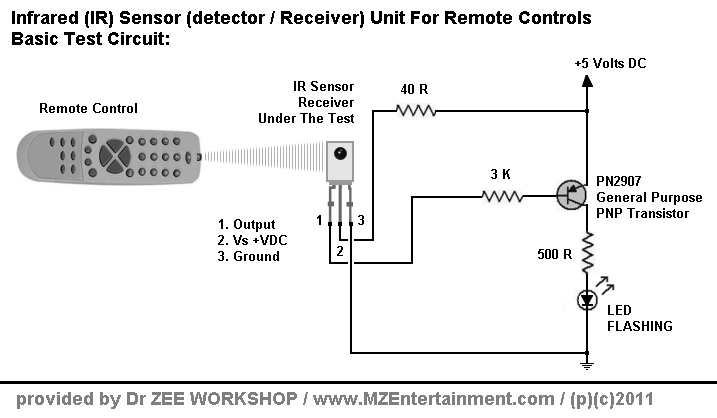

CLICK HERE: IR Sensor For Remote Control Basic Test Diagram.
Removed from retired equipment. TESTED.
$1.29 +S&H
12 AVAILABLE!
ZOOM IN, SEE MORE PRODUCT PHOTOS
ZOOM (+) / SEE MORE PHOTOS

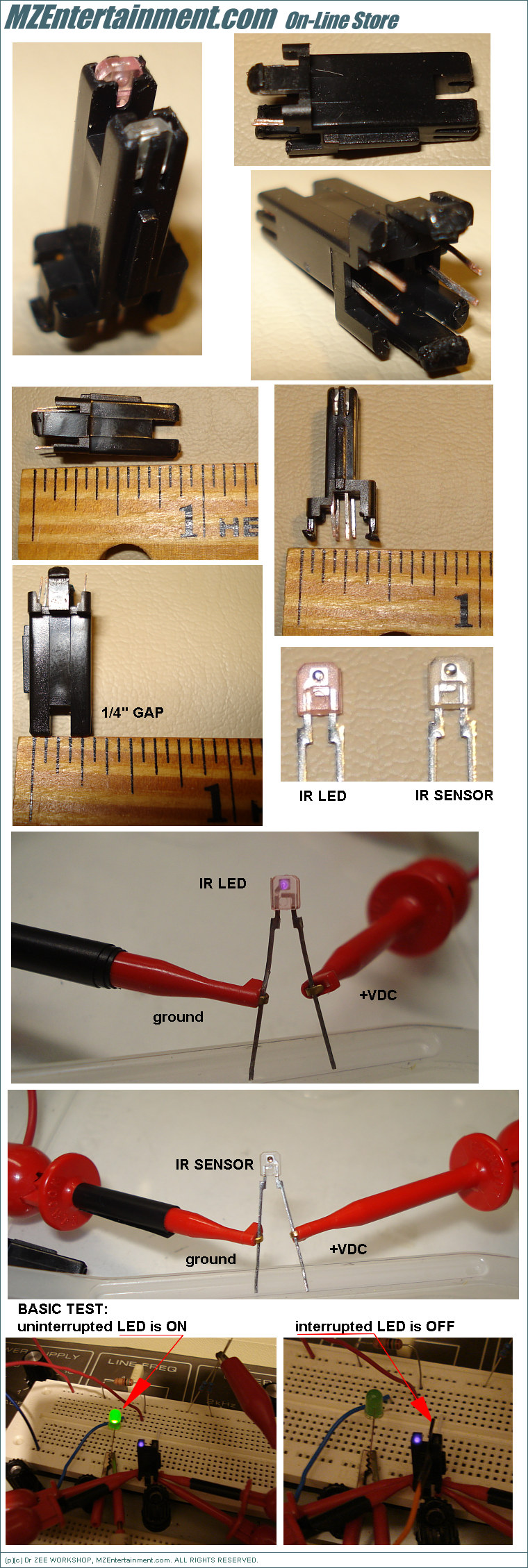

Infrared IR INTERRUPTOR Sensor ( Detector / Optical Switch ) Unit.
The device consists of IR LED, IR Sensor and Mount.
1/4" Gap.
Each Device passed basic test with 9 Volts DC Supply:

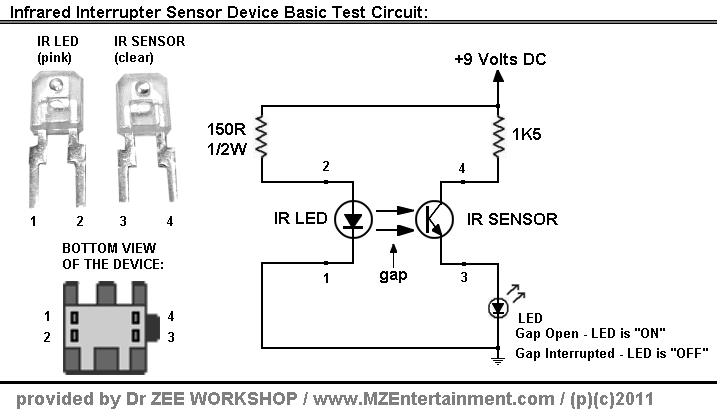

CLICK HERE: IR Interrupter (optical switch / sensor) Test Diagram.
Removed from retired equipment. TESTED.
$1.49 +S&H
14 AVAILABLE!
Dr. ZEE WORKSHOP On-Line STORE SECTIONS (MZEntertainment.com) SHOPPING CART:
Official PayPal Seal
- MZEntertainment.com is PayPal Verified -
Dr. ZEE WORKSHOP On-Line Store Policy and NOTES:
*****
AVAILABILITY:
At Dr. ZEE WORKSHOP On-Line Store Sections you can find and purchase various used, vintage and NOS (New Old Stock) electronic parts and components, consumer electronics, musical instruments and recording equipment, used music records and various used and vintage items that are currently available for sale directly from Dr. ZEE WORKSHOP.
*****
- WE SHIP WORLDWIDE! -
*****
NOTE ON QUANTITY:
Most of the used items at Dr. ZEE WORKSHOP On-Line Store Sections are SINGLE, meaning that only one item is available,
which is indicated above the AD-TO-CART button as: 1 AVAILABLE!. When shopping, Please, DO NOT add any SINGLE items to your Shopping Cart more than one time. In the case, when more than one unit of some USED and NOS (New Old Stock) items are available, the amount of available units is indicated above the ADD-TO-CART button for each item. When placing your order, Please, refer to that amount to make sure that amount of units you are ordering does not exceed the available amount.
Please make sure to check all the amounts of items in your Shopping Cart before Checkout.
It is rare, but possible, that you may order an item (or items), that already has (or have) been sold and is (or are) no longer available. If this happens, we will refaund your payment(s) for the unavailable item(s) via PayPal and you will be notified about the transaction.
*****
ITEMS CONDITION AND GUARANTIES:
ALL Items and Products at Dr. ZEE WORKSHOP On-Line Store are being offered and sold strictly on AS IS basis
with no warranties of any kind and no guaranties other than (and only if) specifically noted in the item description.
Due to specifics of most vintage and used equipment, musical records, used and NOS electronic components and other items, that are being offered and soled through Dr. WORKSHOP On-Line Store, we DO NOT accept any returns and we DO NOT offer any refunds.
*****
DISCLAIMER:
MZEntertainment.com and its owner is not responsible in any way what so ever for any damage, injury or any other loss caused (or may be caused) by making any purchase and/or possessing and/or using of any product or item, that was purchased
from Dr. ZEE WORKSHOP On-Line Store sections at MZEntertainment.com.
ORDERING AND PAYMENT:
The orders can be placed on-line ONLY with secure PayPal payment. You do not have to have PayPal account to make a purchase and
You can use most credit cards when using PayPal payment option.
For more information about PayPal payiment, please, visit www.PayPal.com.
Currently Dr. ZEE WORKSHOP Store DOES NOT accept any other forms of payment than via on-line PayPal payment system.
*****
SHIPPING and HANDLING:
Shipping, Packaging and Handling charges will be automatically added to the total amount depending on items weight and shipping address.
********
After the order has been place, the items from Dr. ZEE WORKSHOP On-Line Store will be shipped within 1-3 business days via USPS.
NOTE: we do provide shipping tracking information (USPS Delivery Confirmation™ Number) via PayPal for Packages shipped inside United States ONLY!.
Delivery Confirmation Service for international orders is NOT available.
********
NOTE: A portion of shipping, packaging and handling cost for some large and/or heavy items may be included in the Items Price.
*****
CUSTOMER SUPPORT:
If you have a specific question or comment regarding to Dr. ZEE WORKSHOP On-Line Store Sections
or have questions about Products and Items that are being offered in these sections or if you need assistance, please, Contact Us, using
Dr. ZEE WORKSHOP On-Line Store CUSTOMER SUPPORT CONTACT PAGE - [CLICK HERE!].
*****
The above posted notes and policies apply ONLY To the purchases directly from Dr. ZEE WORKSHOP Store Sections,
meaning, only to purchases, that were made via MZEntertainment.com Shopping Cart (or BUY IT button) Checkout.
These notes and policies DO NOT apply to any other sections of the MZEntertainment.com
or any other Affiliated vendors or advertisers throughout the MZEntertainment.com website.
*****
THANK YOU FOR SHOPPING at MZEntertainment.com On-Line Store!
THANK YOU!

HOME PROJECTS Dr. ZEE WORKSHOP - D.I.Y. THE STORE CD-ALBUMS RADIO FREE MUSIC STUDIO SKINS GENRES ZEE DUB LAB TECHNO TRANCE BLUES DANCE CLASSICAL CONTACT

COPYRIGHT NOTICE:
All material on this site is protected by copyright law and by international treaties.
You may download this material and make reasonable number of copies of this material only for your own personal non-commercial use.
You may not otherwise reproduce, distribute, publicly perform, publicly display, or create derivative works of this material,
unless authorized directly by the copyright owner.
To request authorization or if you have any questions, please, contact MZE-Electroarts Entertainment Administration.


MZE-ELECTROARTS ENTERTAINMENT ® - MZEntertainment.com is Mike Zee aka Dr. ZEE private and independent music and electronic arts publishing label.
© 1995-2017, Mike Zee and MZE-Electroarts Entertainment ®.
All Rights Reserved.

MZE-Electroarts Entertainment
