Dr. ZEE Custom Musical Instruments and Equipment Workshop - EVERY INSTRUMENT DESERVES LOVE!
Dr. ZEE WORKSHOP Test Equipment.
Dr. ZEE Workshop 25/100, 12/200, 8/300, 5/400 Ohms/W
Dummy Power Load with Attenuator / Audio-Monitoring.
Click to View Schematics Diagram and Control Panel Chart

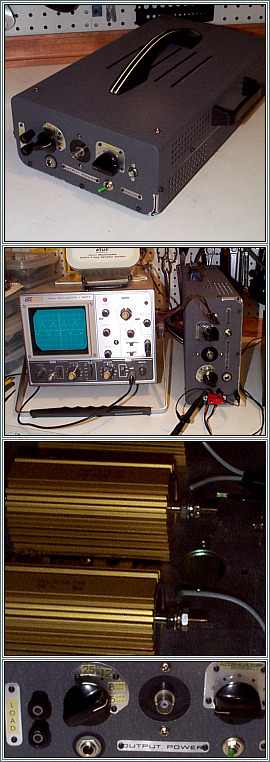

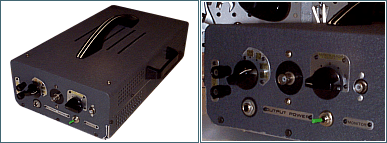

Four Configurations Switchable Dummy Power Load:
25 Ohms at 100 Watts, 12 Ohms at 200 Watts,
8 Ohms at 300 Watts and 5 Ohms at 400 Watts.
Attenuator Option with RCA-jack audio-monitoring output
for signal auditioning of the amplifier under the test.
1/4" TR, Banana Posts and BNC type Coaxial jacks.
Designed and Assembled by Mike Zee aka Dr. ZEE at Dr. ZEE WORKSHOP.
Click on Titles below to view detailed Photos/Charts and Descriptions:

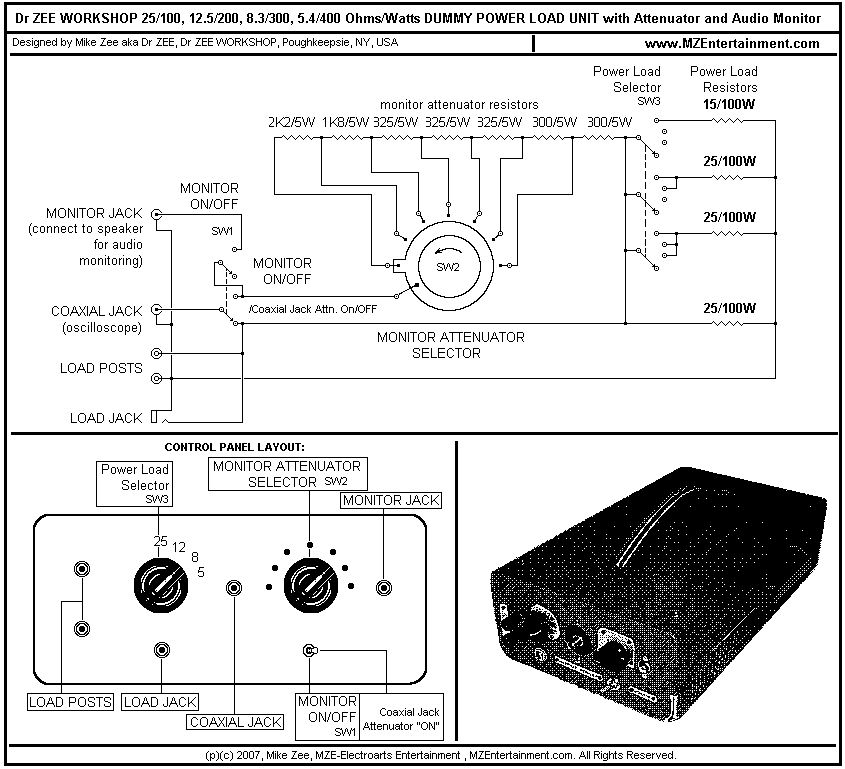

SCHEMATICS DIAGRAM and CONTROL LAYOUT

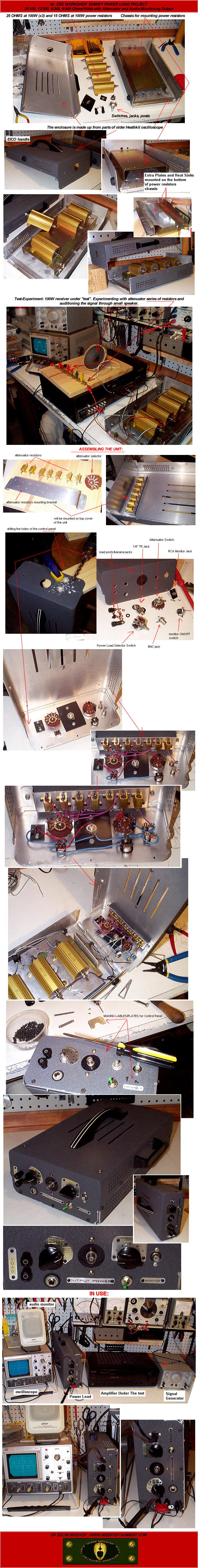

PROJECT IN THE MAKING PHOTOS and DETAILS
CLICK to download and view Schematics Circuit Diagram and Control Layout Details
