Dr. ZEE Workshop UNIVOX Compact Electric Piano
Model CP-110 with BASS.
61 keys standard size keyboard Analog Electric Piano (circa 1970(s)).
"Sound Engine" is based on 12 discrete Square Wave oscillators and
Seven SAJ2110 (SAJ110) 7-stage Frequency Dividers ICs.
Three piano tone-shapes: "PIANO", "HONKY TONK" and "CLAVI CHORD",
that can be enabled as combination for more tone variations.
Two lower octaves can be switched to "BASS".
CONTROLS: Master Volume control, Bass Volume control.
OUTPUTS: Master Audio, BASS and 1/4" sustain pedal jack.
- RESTORATION and SERVICING -
(Click on Titles below to view detailed Photos/Charts and Descriptions)

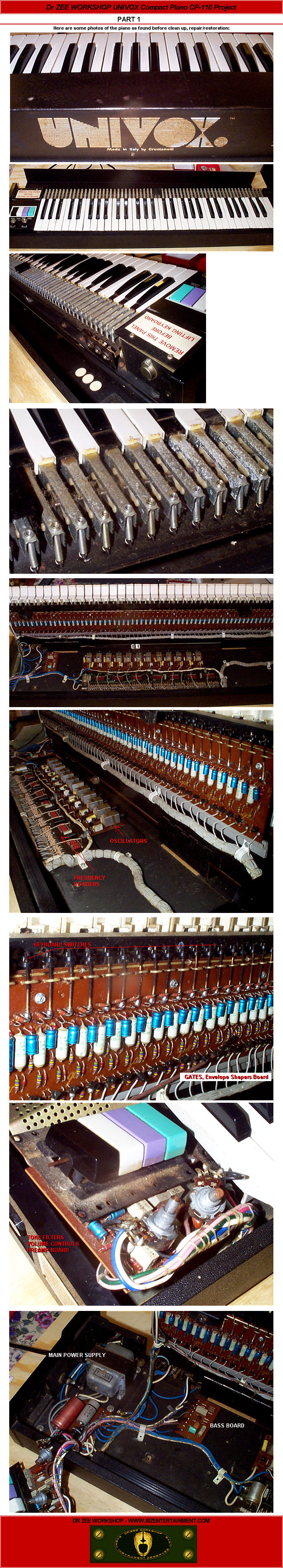

UNIVOX CP-110 AS-FOUND CONDITION (Before Restoration) Photos

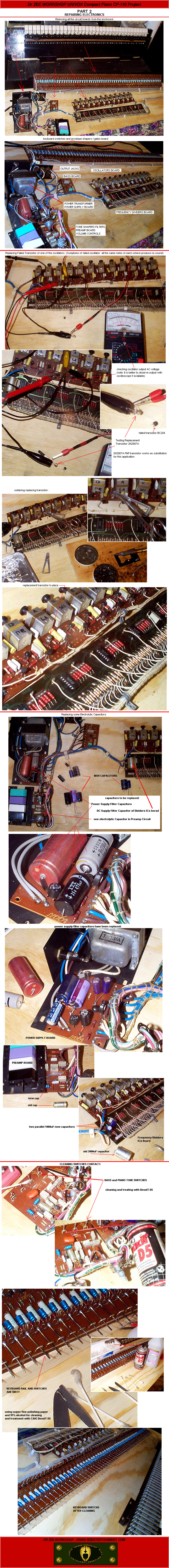

UNIVOX CP-110 Electronics Repair and Servicing

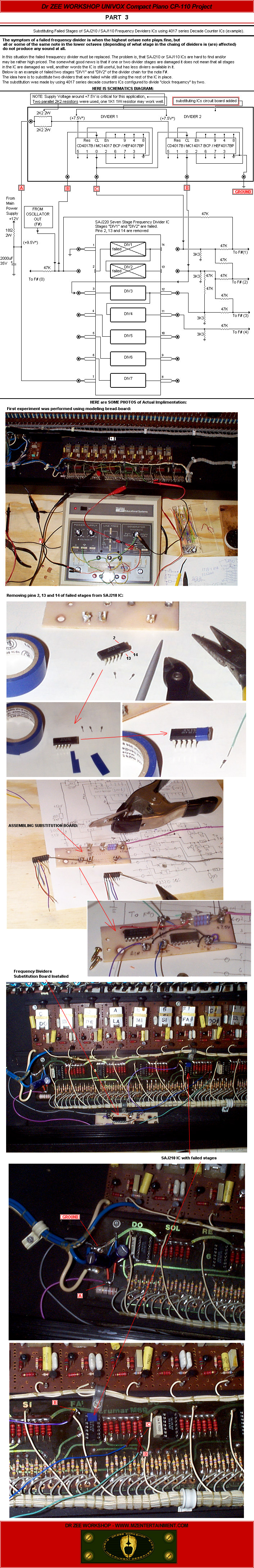

Substituting Failed Sections of SAJ210 / SAJ110 Frequency Divider IC
Substituting Sections of SAJ210 / SAJ110 IC SCHEMATICS DIAGRAM

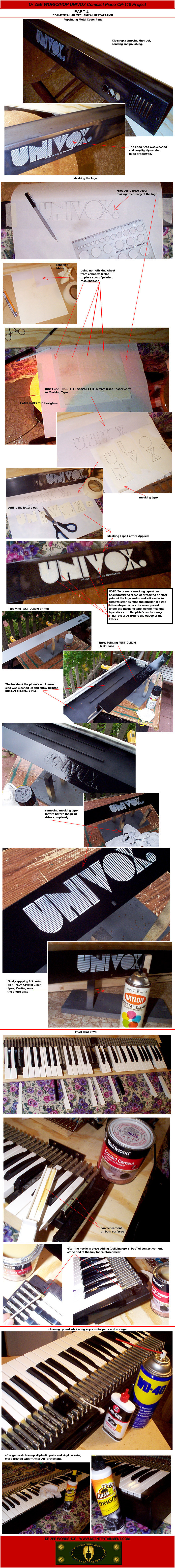

UNIVOX CP-110 Electro-Mechanical and Cosmetical Restoration

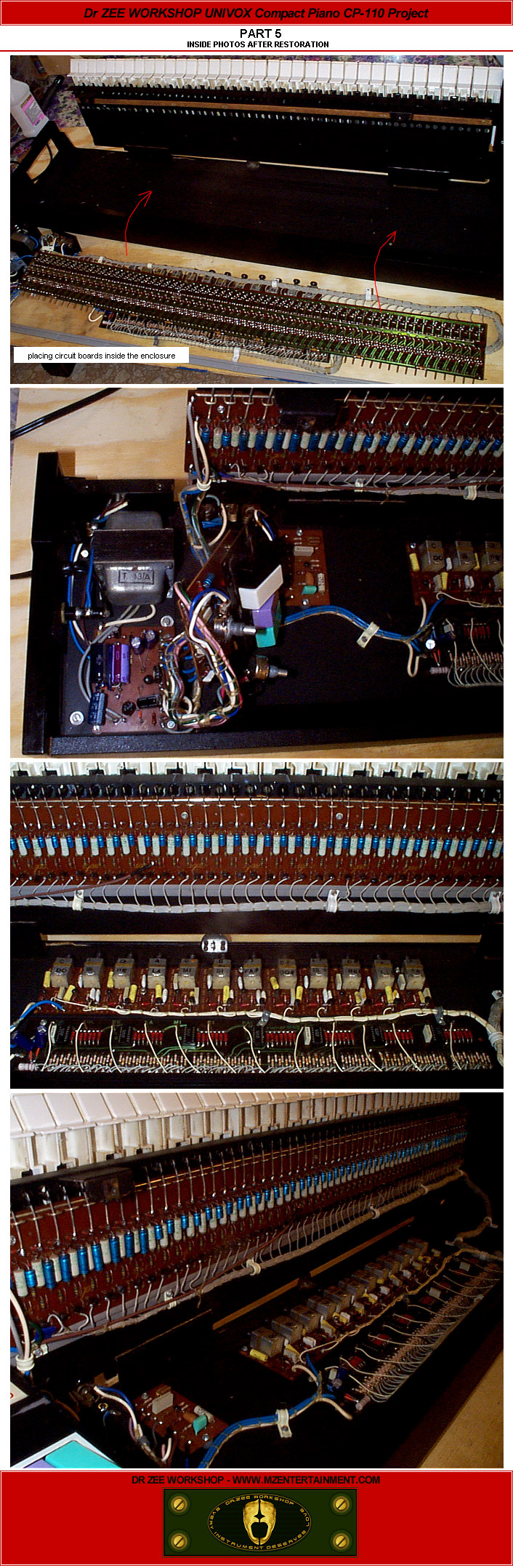

UNIVOX CP-110 Inside Photos After Restoration

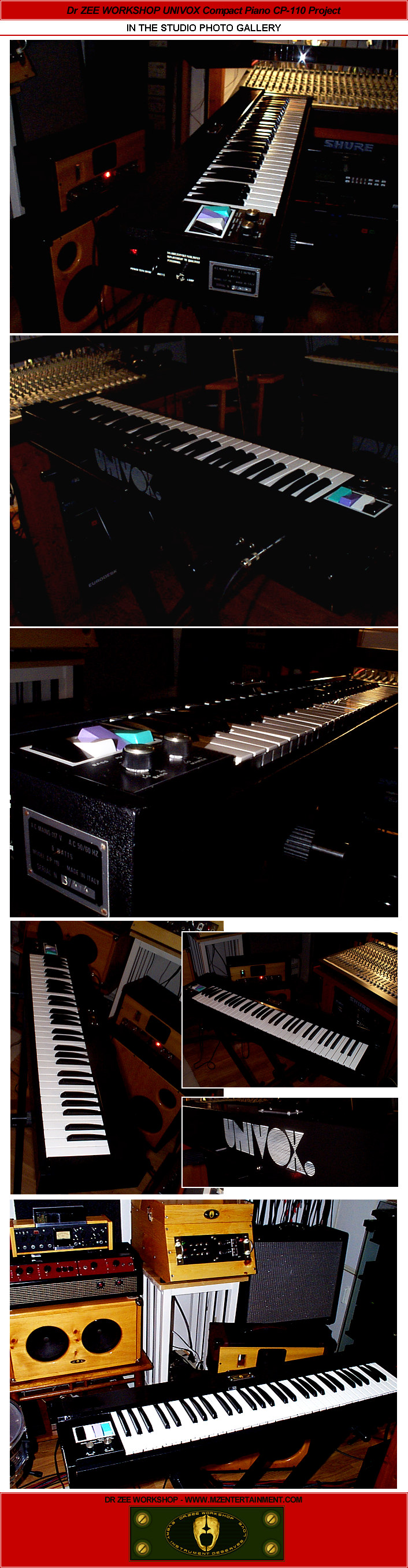

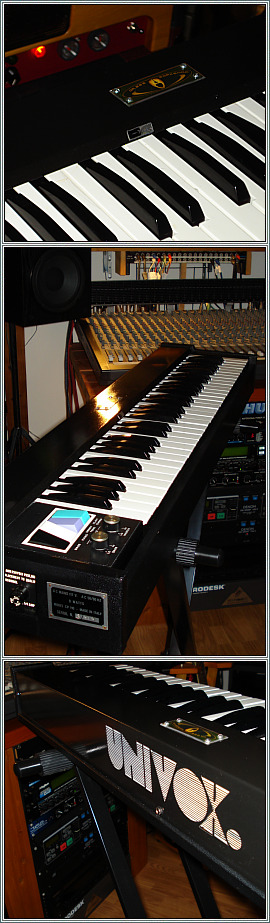

UNIVOX CP-110 [IN THE STUDIO PHOTO GALLERY]
UNIVOX Compact Piano CP-110 SCHEMATICS DIAGRAMS, PARTS LIST (.zip)

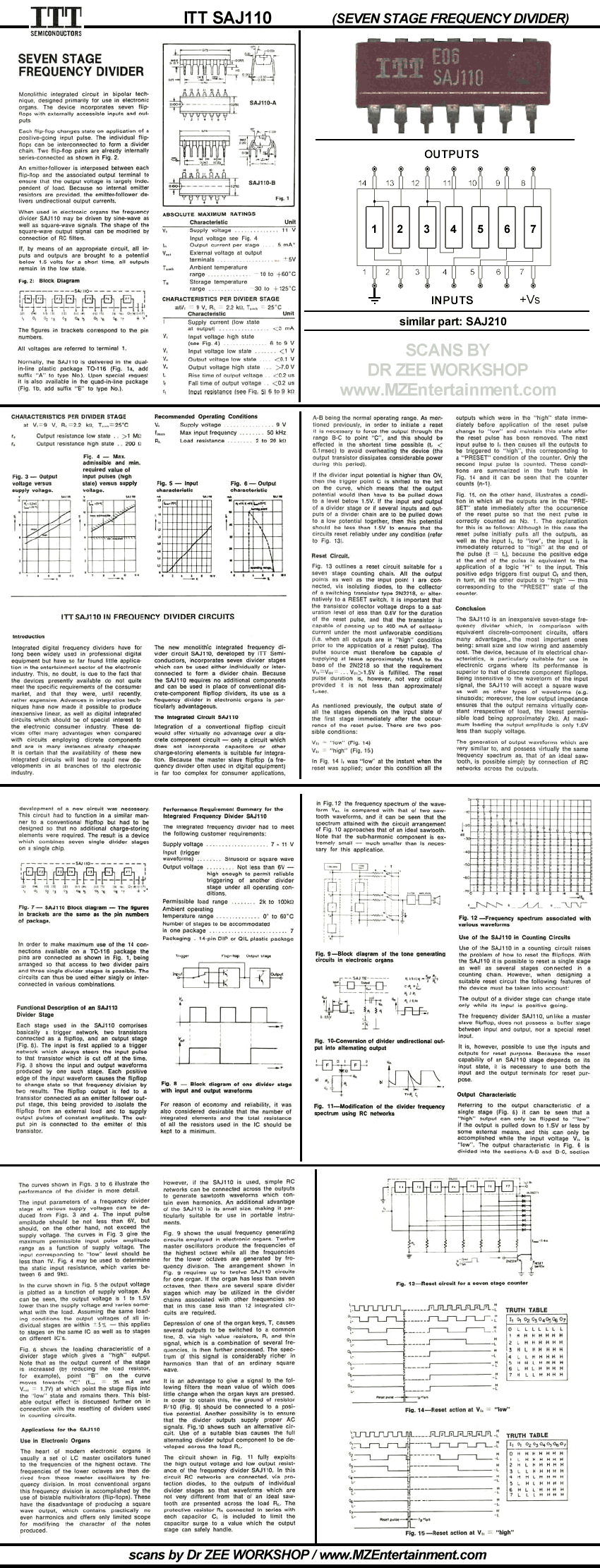

SAJ110 / SAJ210 Seven Stage Frequency Divider IC Tech. Info.
*****
- LISTEN TO mp3 AUDIO SAMPLES -
UNIVOX CP-110 / BOGEN MPR-6 [PIANO / BASS .mp3]
UNIVOX CP-110 / BOGEN MPR-6 [HONKY-TONK / BASS .mp3]
UNIVOX CP-110 / BOGEN MPR-6 [CLAVI-CHORD / BASS .mp3]
UNIVOX CP-110 / BOGEN MPR-6 [BASS ONLY SOUNDS .mp3]
*****
WATCH UNIVOX CP-110 Piano IN ACTION - [CLICK TO WATCH VIDEO .wmv]

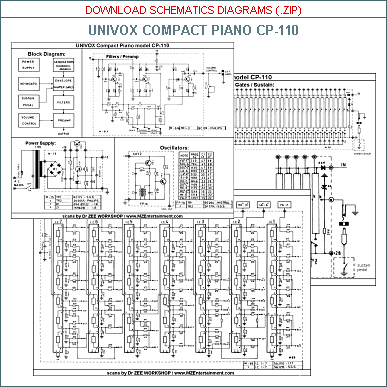

CLICK to download UNIVOX CP-110 Compact Piano Schematics Circuit Diagrams, Block Diagram, Parts List - zip file.
