Dr. ZEE Custom Musical Instruments and Equipment Workshop - EVERY INSTRUMENT DESERVES LOVE!
Dr. ZEE WORKSHOP: Custom Studio Recording and Audio Equipment Projects.

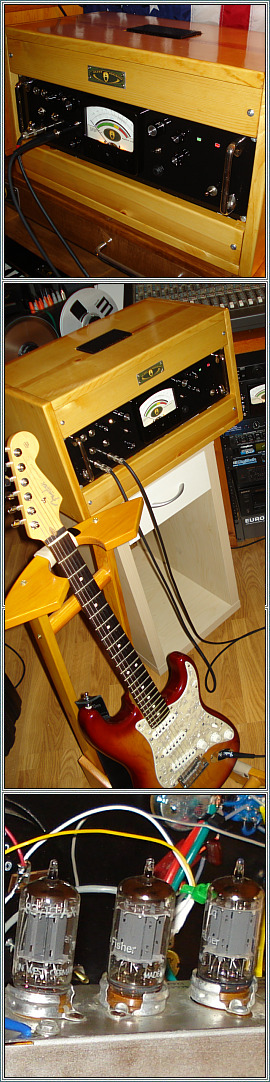

Dr. ZEE Workshop FISHER K-10 Spacexpander
Custom Studio Vacuum Tube Spring Reverb / Preamplifier.
Click to View In The Studio Photos
Dr ZEE WORKSHOP Custom FISHER K-10 Spring Reverb Unit Features:
Classic FISHER K-10 Spacexpander Vacuum Tube System.
with original Gibbs Spring Reverb Tank and
Original The Fisher by Telefunken ECC83 / 12AX7 and 7247 Tubes.
12AX7 Tube Preamplifier stage provides Instrument / Microphone Level Input with Preamplifier Tone Control and Dry Signal Level Control.
Reverb Signal Tone Control and Level Control.
Reverb ON/OFF Switch with FOOOTSWITCH Option.
AUX Line Level DRY and REVERB ONLY inputs.
Instrument and Line Level Outputs.
Large Illuminated Output Signal Analog VU-Meter.
Full Front Panel Control. Custom Woodfinish Enclosure.
Designed for Studio Recording Application.
- Dr ZEE FISHER K-10 Spring Reverb Project -
Click on Titles below to view detailed Photos/Charts and Descriptions:

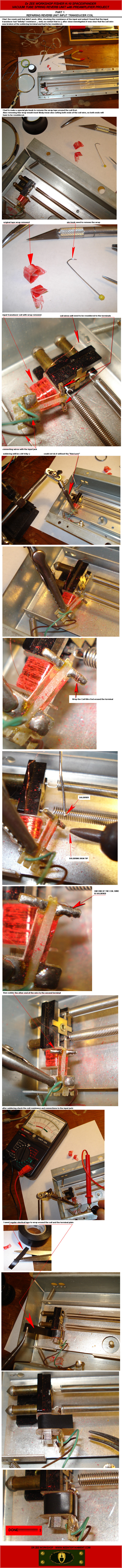

FISHER K-10 PROJECT-[PART-1]-Repairing Reverb Tank Transducer

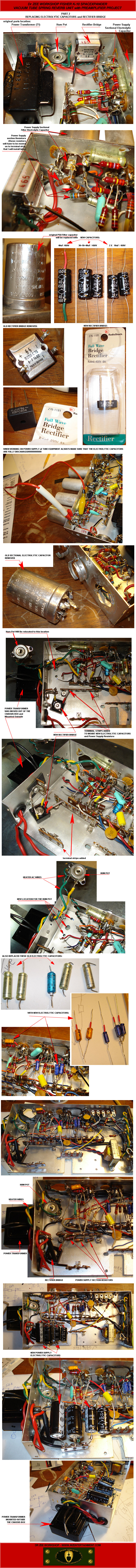

FISHER K-10 PROJECT-[PART-2]-Replacing Capacitors and Rectifier

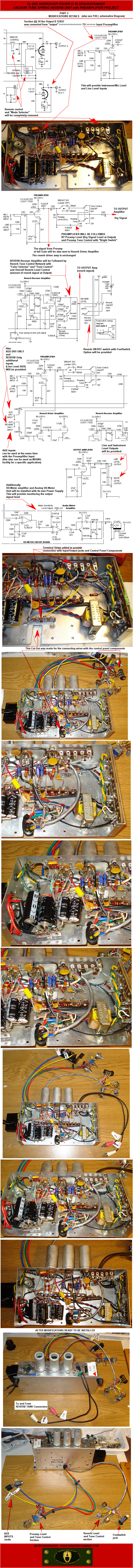

FISHER K-10 PROJECT-[PART-3]-Dr ZEE Modification Details

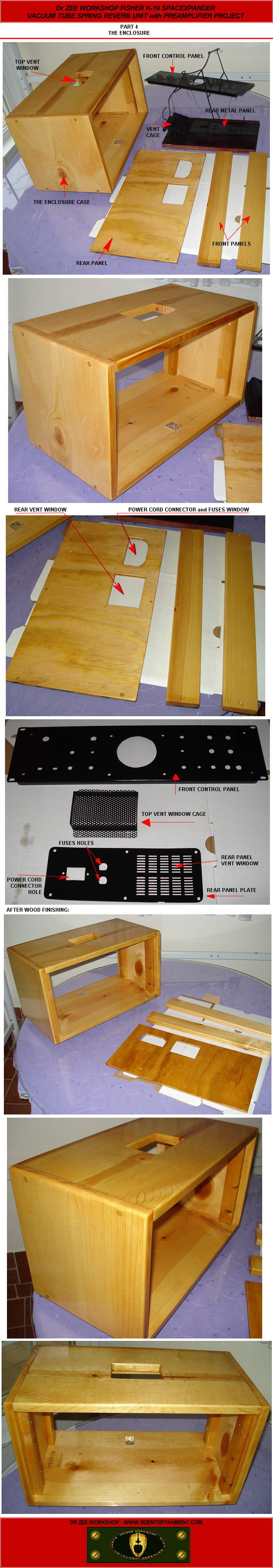

FISHER K-10 PROJECT-[PART-4]-Building The Enclosure

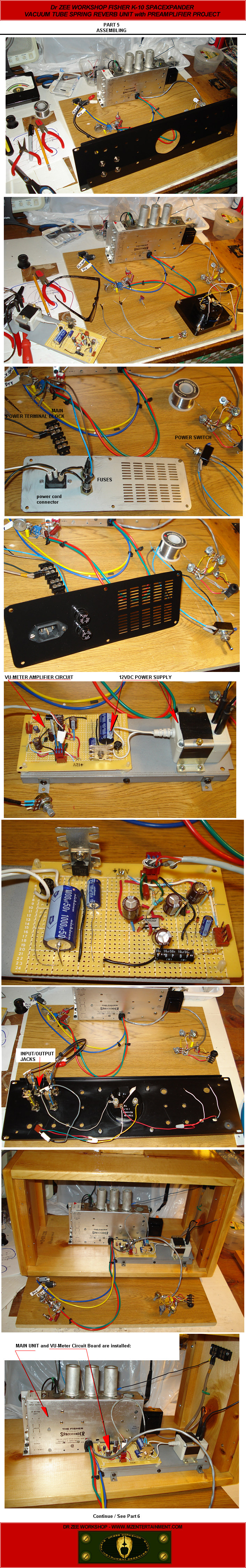

FISHER K-10 PROJECT-[PART-5]-Assembling The Unit
FISHER K-10 PROJECT-[PART-6]-Assembling The Unit (Cont.)

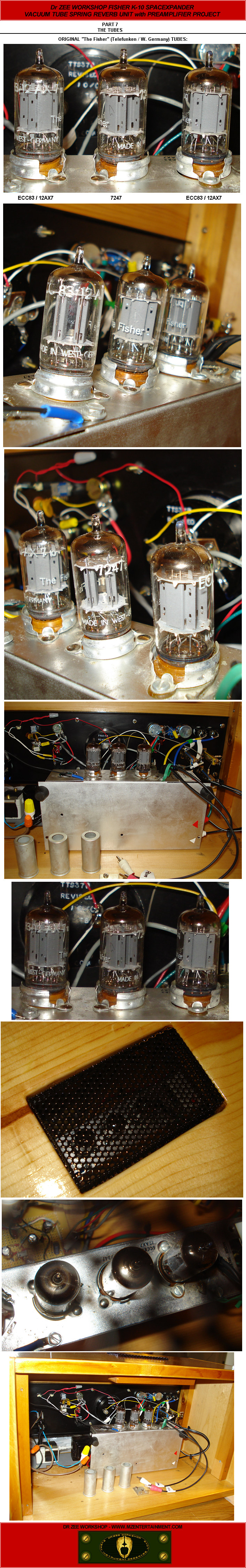

FISHER K-10 PROJECT-[PART-7]-The FISHER Telefunken Tubes Photos

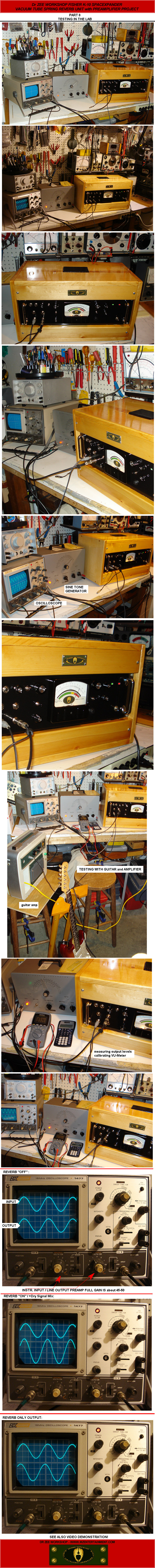

FISHER K-10 PROJECT-[PART-8]-Testing The Unit In The Lab
*****
Dr ZEE FISHER K-10 IN THE STUDIO Photo Gallery
- TECHNICAL INFORMATION -
Dr ZEE WORKSHOP FISHER K-10 Spring Reverb SCHEMATICS DIAGRAM

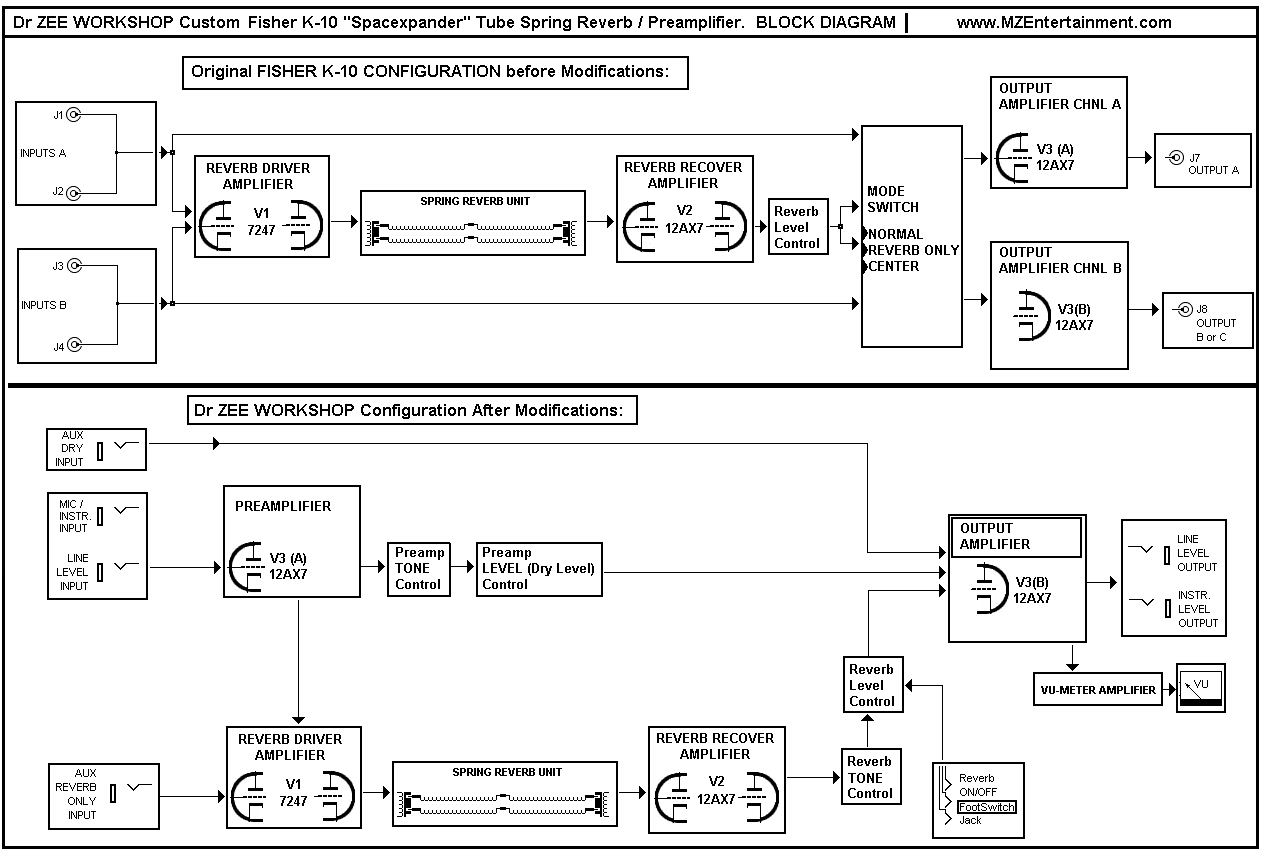

Dr ZEE WORKSHOP FISHER K-10 MODIFICATIONS BLOCK DIAGRAM
Dr ZEE WORKSHOP FISHER K-10 Spring Reverb WIRING DIAGRAM

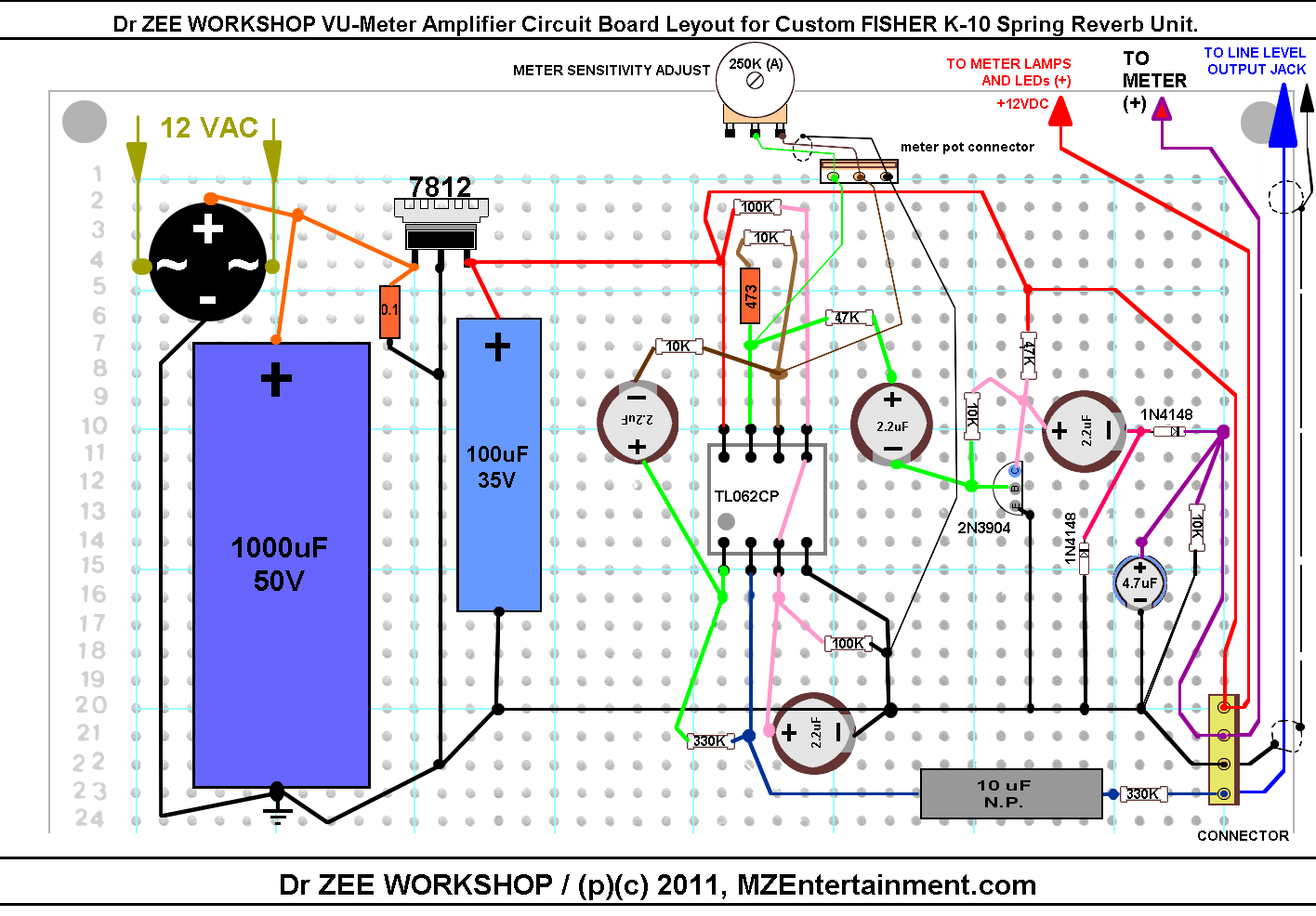

Dr ZEE WORKSHOP FISHER K-10 VU-Meter Board DIAGRAM
*****
ORIGINAL FISHER K-10 Spacexpander SCHEMATICS DIAGRAM
*****
- WATCH DEMONSTRATION VIDEO CLIPS -
Dr ZEE FISHER K-10 LAB TEST DEMONSTRATION VIDEO
(Sine Tone Signal and Guitar Test with Oscilloscope) [.wmv]

*****
WATCH Dr ZEE WORKSHOP FISHER K-10 LAB TEST Video @ YouTube
*****
- LISTEN TO mp3 AUDIO SAMPLES -
COMING SOON [.mp3]
COMING SOON [.mp3]
CLICK HERE TO DOWNLOAD / VIEW SCHEMATICS CIRCUIT DIAGRAM and DETAILS
